Moisture Balance for Gelato: Measure Real Total Solids
Table of contents
Your spreadsheet says the mix is 38 percent solids. That is a prediction built from supplier data sheets, not a measurement of what is actually in the vat. A moisture balance closes that gap in about fifteen minutes, and what it tells you is frequently uncomfortable.
The instrument does not know your recipe. That is the point.
What a moisture balance actually measures

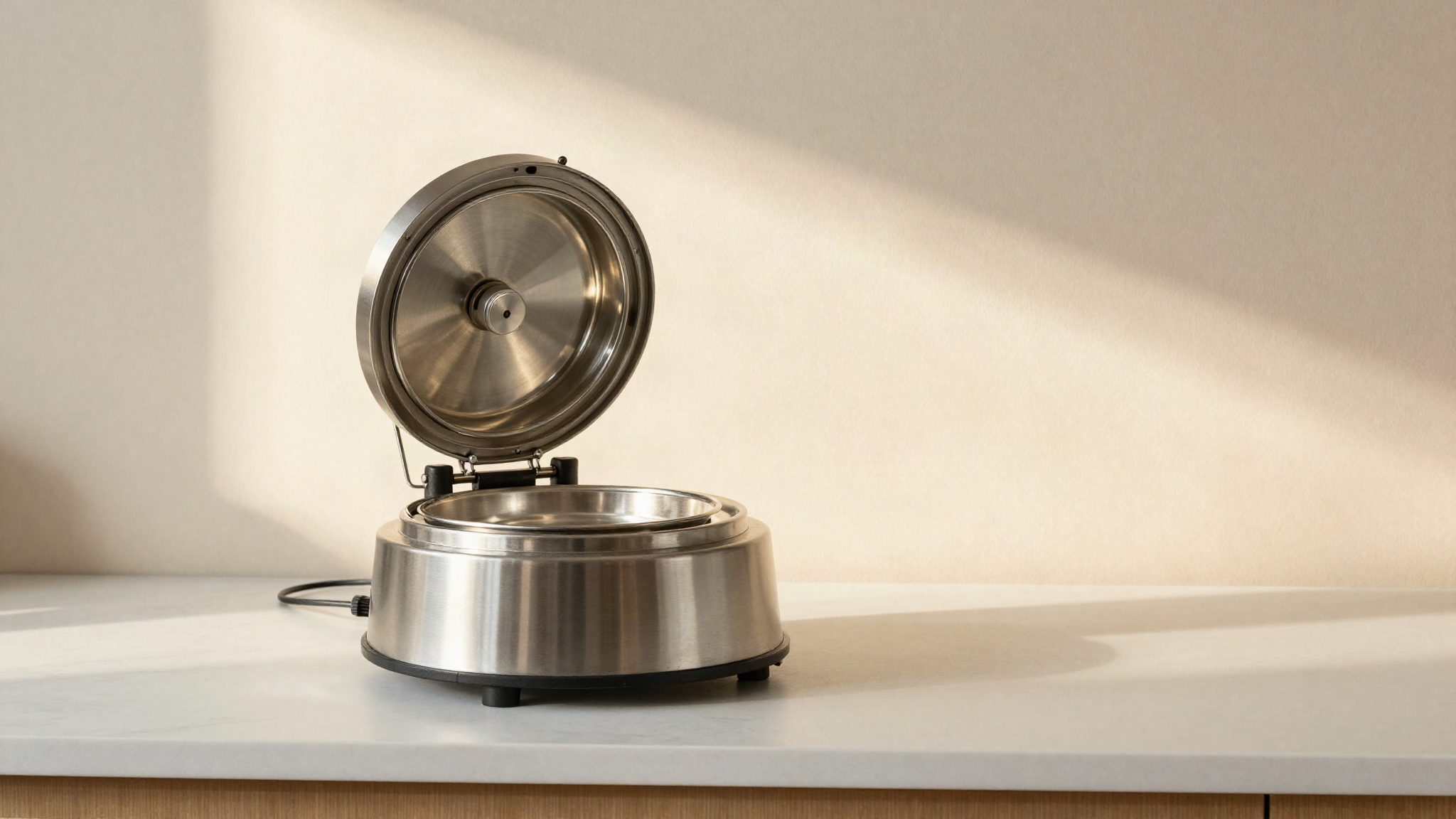

A moisture balance, sold as a moisture analyser or a halogen dryer, is a precision scale with a heater above the pan. You spread a small sample, the instrument records the starting mass, heats until the mass stops changing, and reports the loss. Everything that left was volatile. Everything that stayed is your total solids.
The arithmetic is trivial and worth writing down anyway, because it is the whole instrument:
Total solids (%) = (dry mass / wet mass) x 100, and moisture (%) is simply the remainder.
This is a loss-on-drying method, and it is not a novel one. The reference procedure for dairy is standardised: ISO 6731, published jointly as IDF 21, determines total solids in milk, cream and evaporated milk by drying a weighed test portion in an oven at 102 degrees Celsius to constant mass. A benchtop halogen analyser is a fast approximation of that, trading a few hours in an oven for a few minutes under a lamp.
Quick reference. A moisture balance measures everything non-volatile: sugars, fat, milk solids-not-fat, stabiliser, fibre, cocoa solids. A refractometer measures only what dissolves and bends light. They are not two routes to the same number.

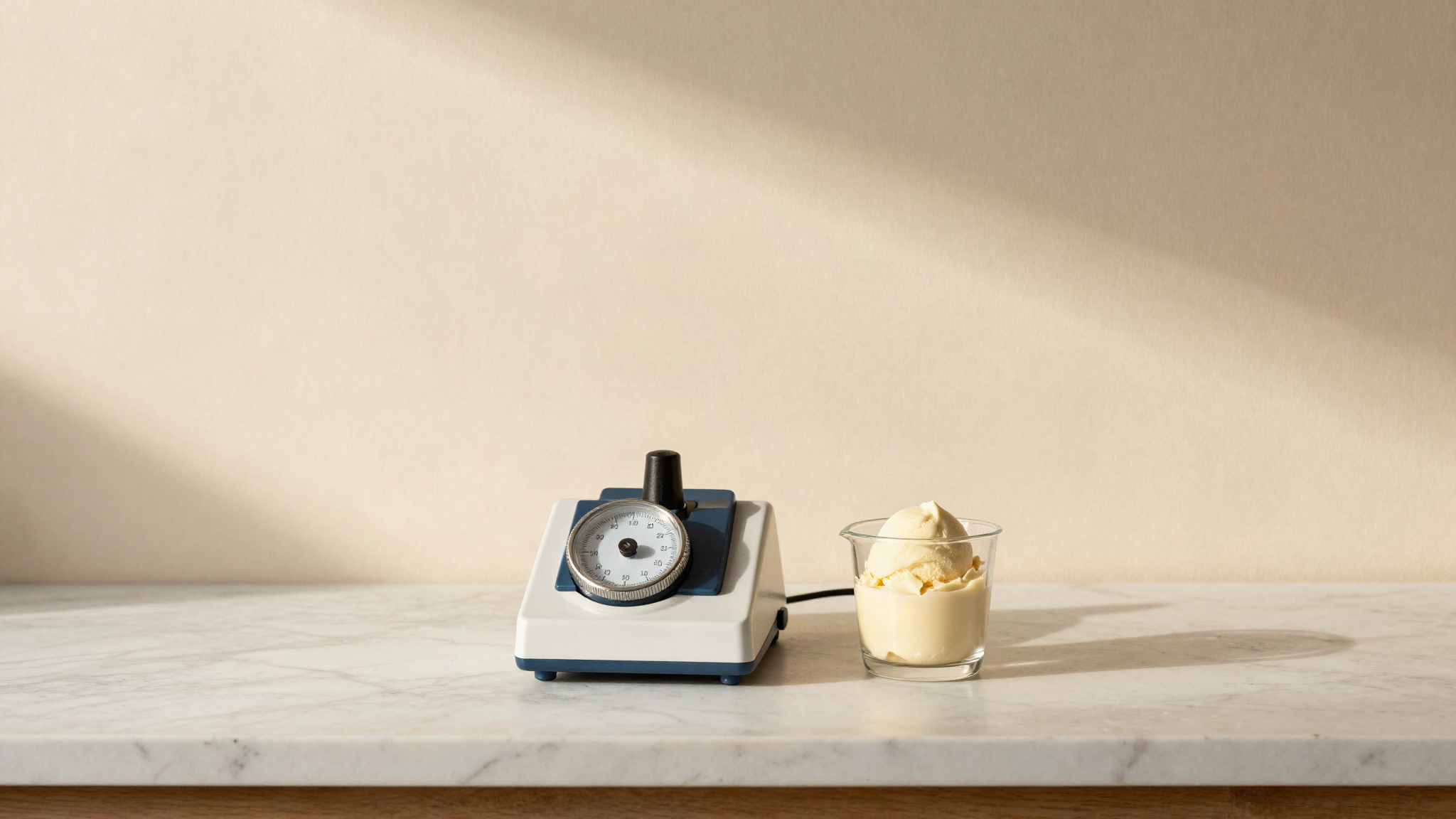

That distinction is the reason to own one. If you have been treating a Brix reading as a solids figure, what a refractometer actually tells you explains why the two diverge in a fat-bearing emulsion, and Brix meters in the gelato lab covers where the reading is still genuinely useful.

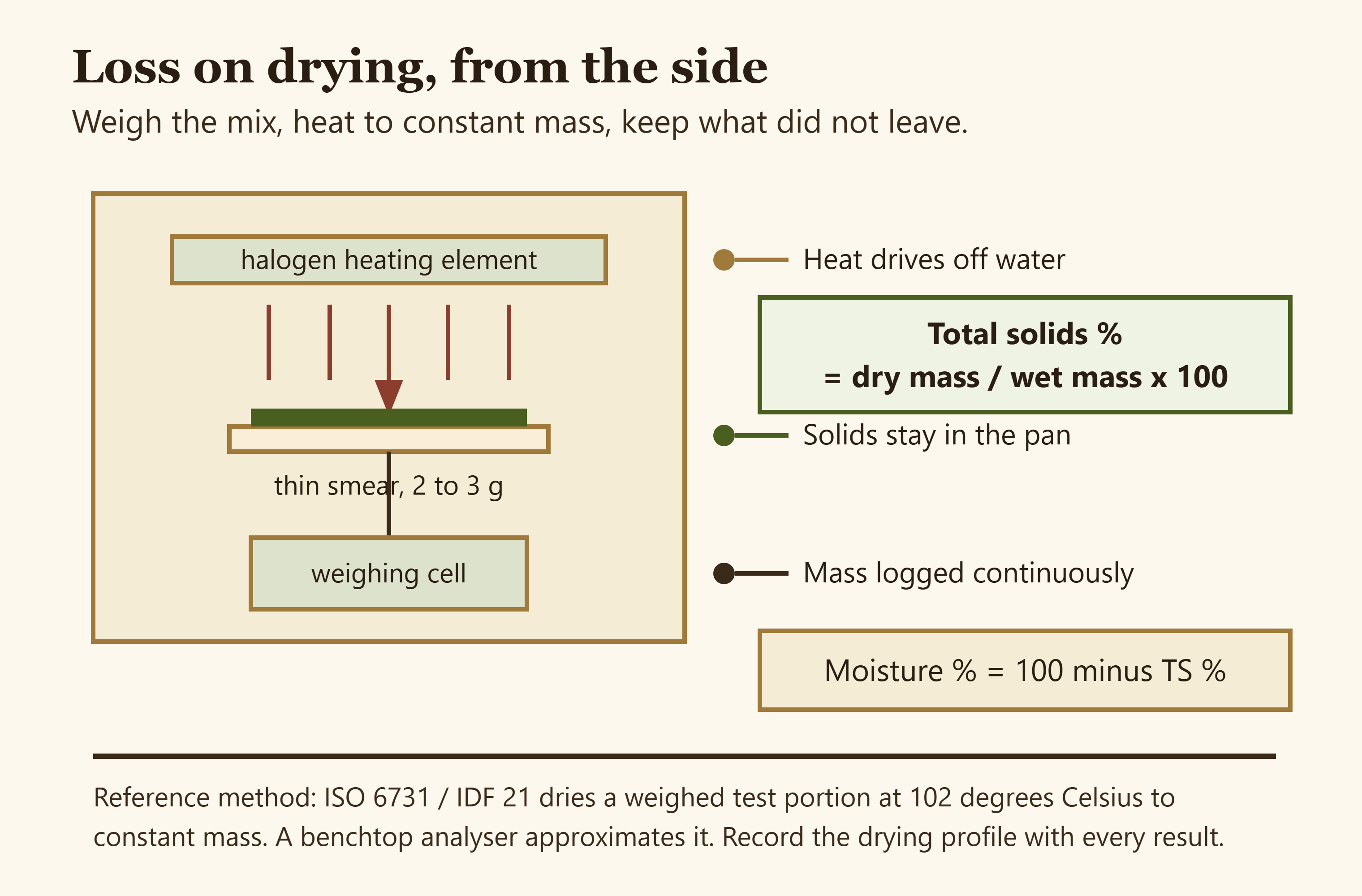

Figure 1. Loss on drying: the instrument weighs, heats to constant mass, and reports what did not leave.
Where your calculated number goes wrong
A balancing sheet computes total solids by adding up declared dry-substance values for each ingredient. Every one of those values carries error, and the errors do not cancel.
Fruit is the largest offender. A purée declared at 10 percent dry substance is a seasonal average across a crop, not a property of the drum in your fridge. Ripeness, variety and rainfall move real fruit solids by several points in either direction, which is exactly the range that decides whether a sorbetto is scoopable. Dairy is steadier but not fixed: cream sold as 35 percent fat is sold to a minimum, not to a target.
Then there are the losses your sheet cannot see. Evaporation during pasteurisation concentrates the mix, and an open vat held at temperature for a long hold concentrates it more than a short one. Residue left in the pasteuriser, the ageing tank and the transfer hoses removes solids and water in different proportions. Nut pastes separate, and the fraction you scoop off the top of a drum is not the fraction the supplier analysed.
None of this is a reason to abandon calculation. Calculation is how you design a recipe; measurement is how you find out whether the lab built the recipe you designed. Keep using the total solids calculator and the dry substance figures for syrups as your model, then verify the model on the bench.
Running the test without fooling yourself
The method is simple and the failure modes are specific.
Take the sample from the mix in motion, not from the top of a settled tank. Fat rises. A sample skimmed off a resting vat reads high in solids and tells you nothing about what the mantecatore will actually receive.

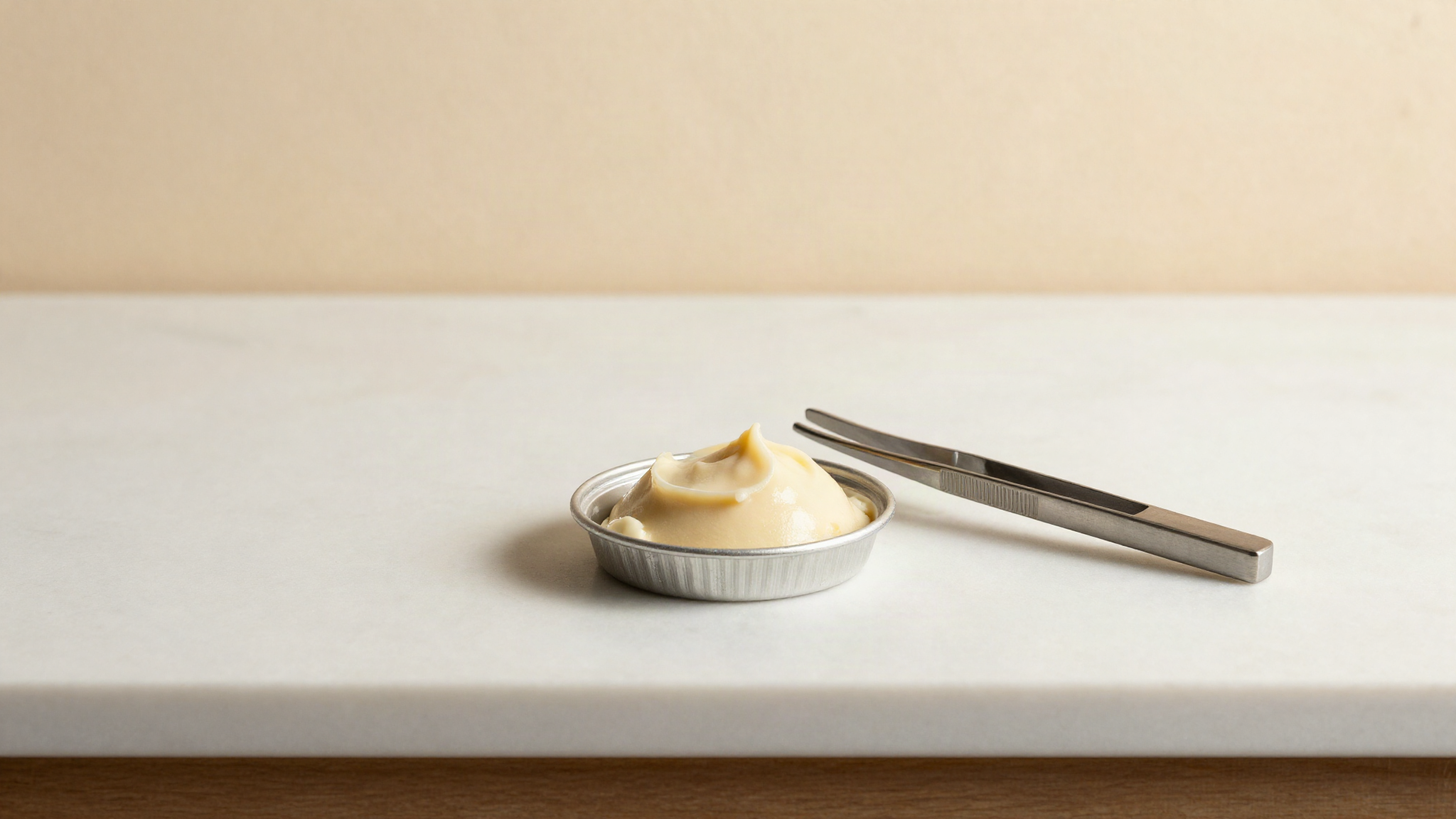

Spread it thin. A blob of mix in the centre of the pan forms a skin, the skin traps water underneath, and the instrument declares constant mass while the sample is still wet inside. Two to three grams smeared to the edges dries evenly. Glass-fibre pads help with sticky, high-sugar mixes.
Choose the temperature deliberately. Higher is faster and also more destructive: sugars caramelise and decompose above the point where they are simply losing water, and any mass they lose as they break down is counted as moisture that was never there. A moderate profile in the region of the 102 degrees Celsius used by the reference method is a defensible starting point for a dairy mix. Whatever you pick, write it down, because a solids number without its drying profile is not comparable to anything.
Use the same profile every time and record it in your batch log. The value of this instrument is almost entirely in the trend, and a trend built from three different drying programmes is noise.
| Reading against target | Likely cause | First thing to check |
|---|---|---|
| Solids high by 1 to 2 points | Evaporation in an open pasteuriser | Hold time and lid discipline |
| Solids low by 2 or more points | Fruit or purée weaker than declared | Test the drum, not the data sheet |
| Result drifts between duplicates | Sample too thick, or skinning | Spread thinner, use a pad |
| Everything reads low, consistently | Drying profile too gentle, or calibration | Run a known standard |
What to do with the number
A measured solids figure is only useful if it changes a decision. Three decisions it should change.
First, it settles arguments about texture. Gelato that comes out icy is usually short of solids, because water that is not bound by dissolved and dispersed matter is free to crystallise. If the sheet says 38 and the balance says 34, you have found the cause of your icy texture without changing a single ingredient, and the relationship between bound water and crystal growth is covered in free and bound water in frozen systems.
Second, it corrects your supplier assumptions permanently. Measure a purée once, and the number you enter in the balancing sheet for the rest of that drum is real. For sorbetti, where fruit is most of the recipe, this single habit does more for consistency than any other bench measurement; how to balance a sorbetto assumes you know the fruit you actually have.
Third, it validates your milk solids-not-fat calculation. Total solids does not decompose itself into fat, MSNF and sugar, so the balance cannot replace the sheet. But if measured total solids agree with calculated total solids, the components underneath are far more likely to be right too.
Is it worth buying
A moisture analyser is a middling purchase: more than a refractometer, much less than a homogeniser. It earns its place in a lab that makes sorbetti with variable fruit, that has recurring unexplained texture complaints, or that needs a defensible measured record rather than a calculated one.
If you are not there yet, the honest interim is an oven and a scale, following the same loss-on-drying logic over several hours. Slow, unglamorous, and it produces the same number. What matters is not the instrument but the habit: measure the mix you actually made, write it next to the mix you intended, and treat the difference as information rather than an annoyance. A lab that does this stops guessing, which is the entire promise of a calibrated bench.
