A refractometer reads the sugar concentration of a liquid as Brix (°Bx, grams of sucrose per 100 g of solution). In a gelato lab it is the fastest way to verify syrup density, fruit puree concentrate and finished-base total solids — feeding honest numbers into bilanciamento.
The refractometer is the cheapest piece of measuring equipment in a gelato lab and the one most often skipped.
What the Refractometer Reads
A refractometer measures how much a beam of light bends — refracts — when it passes through a liquid sample. Pure water at 20 °C has a refractive index of 1.3330. Add sucrose and the index rises in a known, calibrated way. The instrument converts refractive index into Brix using the international ICUMSA sucrose tables.
Quick reference. Brix is % sucrose by mass in a pure water + sucrose solution. In real samples (fruit, mixed sugars, dairy) the Brix reading is an estimate of total dissolved solids, not an exact measurement.
Reading an optical refractometer: the crisp boundary line crosses the calibrated Brix scale at the sample's value.
Optical vs. Digital — Which to Buy
Two architectures dominate.
Handheld optical (€30-€80)
A prism, a hinged daylight plate, and an eyepiece with a calibrated scale. You drop 2-3 drops on the prism, close the plate, point at any light source and read. Modern units include automatic temperature compensation (ATC) between roughly 10-30 °C. Adequate for syrups, fruit purees and finished sorbet base.
Cheap, robust, no batteries. The downside: parallax error of ±0.5 °Bx is normal, and dark or coloured samples (cocoa base) are hard to read at the boundary line.
Digital benchtop (€150-€300)
LED light source, photodiode detector, micro-controlled temperature compensation. Returns Brix to ±0.1 °Bx, often with a direct °C readout. Reads dark and turbid samples cleanly because it senses transmitted light electronically rather than relying on the eye.
Worth it if you produce more than 30 kg of sorbet weekly or routinely work with cocoa, hazelnut and pistachio bases — see pistachio paste and hazelnut paste for why dark sample reads matter.
Calibration — A 30-Second Daily Habit
Both architectures drift. Calibration takes 30 seconds:
- Clean the prism with distilled water and dry with a soft cloth.
- Drop distilled water at 20 °C on the prism.
- The reading must be 0.0 °Bx. If it isn't, turn the calibration screw (optical) or press CAL (digital) until it is.
- Wipe and proceed.
Skip calibration and your readings drift 1-3 °Bx within a week of normal use, which is the difference between an in-spec sorbet and a soft mess. Always calibrate at the temperature you will measure at — the ATC corrects sample temperature, not instrument temperature.

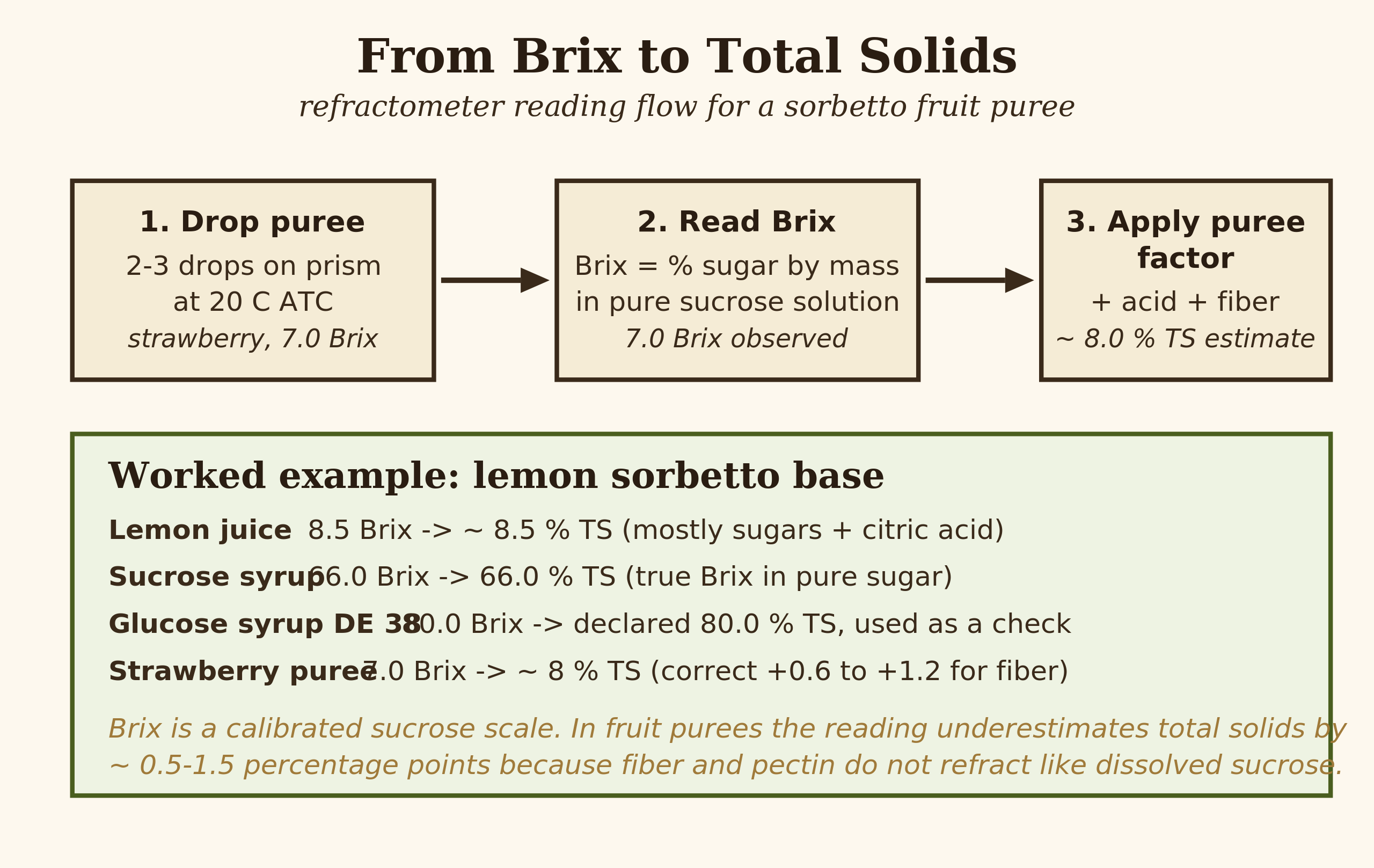

Figure 1 — from a drop of fruit puree to a usable total-solids estimate in three steps.
What Brix Actually Tells You About Gelato
Three uses dominate.
1. Verify a syrup or simple-sugar density. Pure sucrose syrup at 65 °Bx is reading what it says — 65% sucrose by mass. Same for glucose syrup declared at 80 DE 38: the bottle says 80, the refractometer says 80, you trust the next batch. A 2 °Bx delta between bottle declaration and reading flags a problem.
2. Check fruit puree concentration. A fresh strawberry puree typically reads 7-9 °Bx. A "concentrate" labelled 30 °Bx is three times the sugar — and the refractometer is the only way to verify that quickly. Crucial for sorbetto math; see how to balance sorbet recipe for the conversion.
3. Audit the finished base. A complete dairy gelato mix should land in a narrow Brix band specific to the recipe — typical ranges sit between 28 and 36 °Bx depending on sugar load and fat. Outside that range, the PAC and POD calculations fall apart.
The Limits of Brix
A refractometer is calibrated against pure sucrose. Real gelato bases contain six to eight ingredients, including fats, proteins, salts and other sugars. A few corrections to keep in mind:
| Sample type | Brix reading | Real total solids |
|---|---|---|
| Pure sucrose syrup | 65 °Bx | 65 % |
| Glucose syrup DE 38 | 80 °Bx | ~ 80 % (declared) |
| Strawberry puree | 7 °Bx | ~ 8 % (fiber adds) |
| Whole milk | 11 °Bx | ~ 12.5 % (lactose + protein + fat refract differently) |
| Finished dairy gelato base | 32 °Bx | ~ 36-38 % (fat under-refracts) |
Fat under-refracts: a 36 % total-solids dairy base reads 4 percentage points lower than its true mass-based total solids. Fiber and pectin in fruits over-refract slightly. For dialled-in lab math, use the refractometer for syrups and puree QC and confirm finished-base solids on a total solids calculator or by drying.
Drop, read, calibrate. Thirty seconds per sample, a thousand euros of scrap avoided per year.
For the rest of the bilanciamento toolkit see sugar substitution, dextrose and inverted sugar. The refractometer is the cheap instrument that ties them all together — without it your math is theory, with it your math is verified.
