Every frozen gelato holds two kinds of water at once: water that freezes into ice and water that never does. Knowing which is which explains why gelato stays scoopable, why it turns icy after a thaw, and why no freezer on earth turns a mix fully solid.
Two Kinds of Water in a Frozen Mix
Quick reference. Free water freezes into ice as temperature drops; bound water stays liquid because it is hydrogen-bonded to sugars, proteins, and stabilizers. Texture lives in the balance between the two.
A gelato mix is mostly water — usually 60 to 64 percent by weight once you account for total solids of roughly 36 to 42 percent. But that water is not a single uniform pool. Some of it is "free": loosely held, mobile, and able to migrate and crystallize into pure ice the moment temperature drops far enough. The rest is "bound": associated through hydrogen bonding with dissolved sugars, milk proteins, and hydrocolloid stabilizers. That association lowers the water's mobility so it resists crystallizing. Marshall, Goff and Hartel describe this unfreezable fraction as water held tightly enough that it never forms ice at any temperature reached in normal storage (Marshall, Goff & Hartel, Ice Cream, 7th ed.). The distinction is not academic: free water is what you can manage through formulation and temperature, while bound water is the floor you can never freeze past.
Why Water Never Fully Freezes
When you churn and chill a mix, the purest, most mobile water freezes first. As ice forms, the dissolved sugars left behind concentrate in the shrinking liquid fraction — a process called freeze concentration. That ever-more-concentrated syrup has a steadily lower freezing point, an effect quantified by freezing point depression and tracked in recipes through PAC. The dynamic is self-reinforcing: each degree colder freezes a little more water, which concentrates the serum further, which depresses the freezing point again, which means the next slice of water needs an even lower temperature to freeze. The curve flattens but never reaches zero liquid. A fraction of water stays unfrozen down to the deepest practical temperatures, and that surviving liquid is what carries flavor compounds to your tongue and keeps the structure from shattering like an ice cube.
How Much Water Is Actually Frozen at Serving Temperature

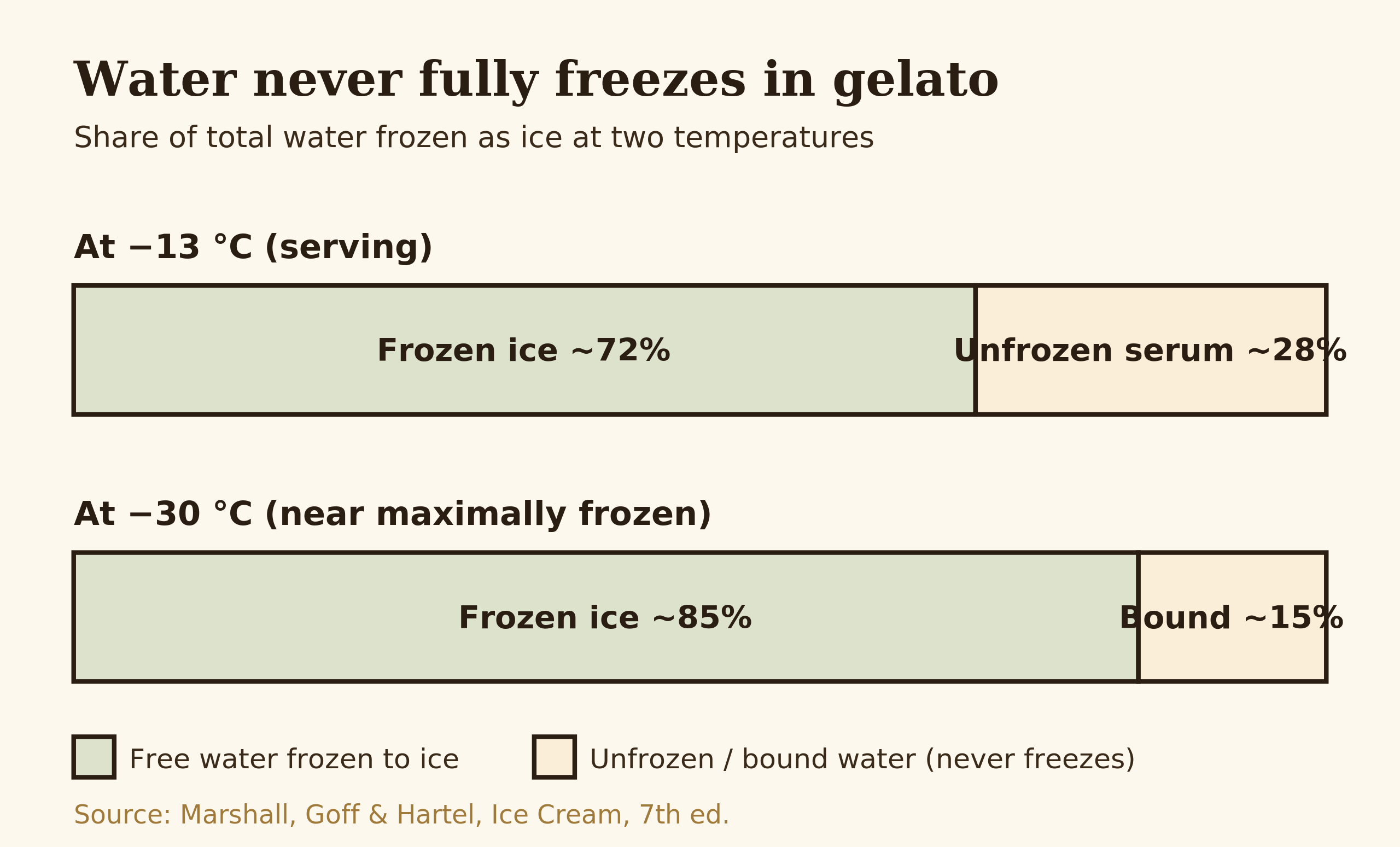

The practical takeaway is that "frozen" gelato is only ever partly frozen. At the −11 to −13 °C window where gelato is served, a large share of water is still liquid, which is exactly why gelato is scoopable while a block of pure ice is not. Pushing colder firms the product by freezing more free water, but it also makes it harder and number on the palate.
| Temperature | Approx. share of water frozen | Eating state |
|---|---|---|
| −6 °C | ~50% | Too soft to hold shape |
| −11 °C | ~65% | Soft, scoopable (serving) |
| −13 °C | ~72% | Firm, classic gelato |
| −18 °C | ~80% | Storage-hard |
| −30 °C | ~85% | Near maximally frozen |
Even near −30 °C the system never reaches 100 percent ice; the remaining water is bound. Typical ice-cream-type mixes retain on the order of 6 percent of their total weight as unfreezable water (Goff & Hartel, Ice Cream, 7th ed.). The exact curve shifts with your sugar blend, because high-PAC sugars such as dextrose and fructose keep more water in the liquid phase at any given temperature, while a sucrose-heavy recipe freezes harder and faster. This is also why two recipes with identical total solids can feel completely different in the cup: the one carrying more high-PAC sugar keeps a larger pool of free water liquid at serving temperature, reading as softer and creamier, while the other freezes a greater share of that water into ice and reads as firmer and colder.
How Sugars, Proteins and Stabilizers Hold Water
What turns free water into bound water is the surface chemistry of your solids. Sugars are the heaviest lifters by mass: their hydroxyl groups form hydrogen bonds with surrounding water molecules, both depressing the freezing point and immobilizing a thin shell of water around each dissolved molecule. Milk proteins from skim milk powder and the MSNF fraction contribute too, holding water in their folded structures and at their charged surfaces. Hydrocolloid stabilizers such as locust bean gum and guar gum work differently again: they do not change the freezing curve much, but they thicken the unfrozen serum into a viscous, water-trapping network that slows how quickly free water can migrate and find an ice crystal to join. The combined result is a system where most of the "unfreezable" behavior is really about mobility, not some special chemical immunity to cold.
Bound Water and the Glass Transition
Bound water also sets the floor of molecular movement. As the unfrozen serum concentrates, it eventually reaches its glass transition temperature, Tg′, where the syrup turns from a viscous liquid into a rigid amorphous glass. For ice-cream-type systems Tg′ sits around −30 to −35 °C. Below that point the bound water and sugars are effectively locked in place, ice crystals can no longer grow, and the product reaches its most stable state. This is the science behind blast chilling and abbattimento: rush the mix through the freezing zone fast, and the free water sets as many tiny crystals rather than a few coarse ones, leaving the smoothest possible structure.
Why It Matters for Texture and Shelf Life
The free-versus-bound balance is the hidden lever behind most texture problems. When gelato warms during a poorly managed display or a slow transport, free water melts, then refreezes onto existing crystals as it cools — the mechanism behind heat shock and the coarse, icy texture that follows. Each thaw-refreeze cycle shifts a little more water out of the controlled bound state and into large, perceptible ice. Stabilizers fight this by immobilizing free water in a viscous network; managing overrun and resting the mix during maturazione both nudge more water toward the bound, controlled state. Get that balance right and a good gelato stays smooth from the first scoop to the last. The goal is never to freeze all the water — it is to freeze the right amount of it into crystals small enough that your tongue never feels them, and to keep the rest bound, viscous, and stable against the next swing in temperature.
