Brix Meter for Gelato — Calibrate Sugar by Refractometer
Table of contents
A refractometer measures the angle at which light bends through a sugar solution, returning a reading in degrees Brix (°Bx) — a stand-in for soluble solids on a 0–100 scale calibrated to sucrose.
What °Brix actually measures
A degree Brix equals 1 g of sucrose dissolved in 100 g of solution, measured at 20 °C. The instrument was originally developed for the sugar industry, and the scale carries that legacy: every reading is reported as if the dissolved solids were pure sucrose. In practice the refractometer doesn't care what's dissolved — it reads everything in the water phase: sugars, milk solids non-fat (MSNF), milk proteins, stabilizers, organic acids, and a small fraction of suspended fat.
Quick reference. For Italian artisanal gelato bases, expect Brix readings of 30–38 °Bx; for sorbet bases, 22–32 °Bx.
How to read a refractometer correctly
Three things ruin a Brix reading more often than the instrument itself:
| Source of error | Fix |
|---|---|
| Sample not at 20 °C | Use an ATC (automatic temperature compensated) model or cool/warm the sample to 20 °C before reading |
| Fat globules on prism | Dilute with distilled water 1:1 and multiply reading × 2, or filter through cheesecloth |
| Dirty or un-calibrated prism | Zero with distilled water before every session |

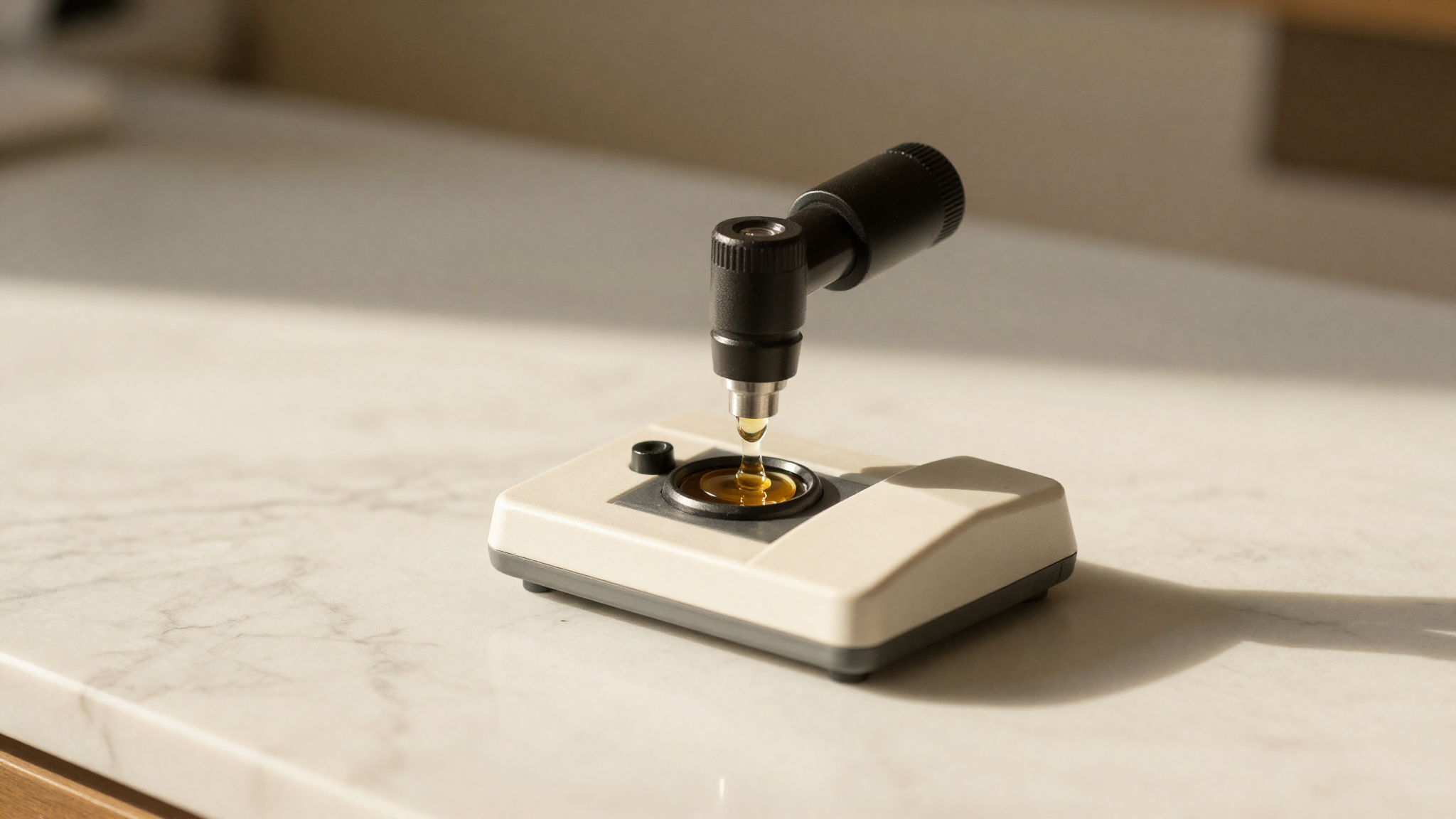

For a daily lab routine: clean the prism, drop 2–3 drops of mix, close the cover plate, look through the eyepiece toward a light source, and read where the boundary line crosses the scale.
Calibration step-by-step
- Place 2 drops of distilled water on the clean prism.
- Close the cover, wait 30 seconds for thermal equilibrium.
- Read — the boundary should sit exactly on 0 °Bx.
- If it doesn't, turn the calibration screw on the top of the instrument until it does.
- Wipe dry with a soft lens cloth.
Repeat once a month, or more often if the meter lives in a humid environment.
Brix vs total solids vs sugar content
These three numbers are related but not interchangeable. For a typical milk-based gelato mix at 38 °Bx:
| Metric | Approx value | What it includes |
|---|---|---|
| Brix reading | 38 °Bx | Sugars + MSNF + proteins + small fraction of fat |
| Total solids (gravimetric) | 38–40% | Everything non-water, more accurate than Brix |
| Sugar content (formulated) | 18–20% | Only added sugars (sucrose, dextrose, others) |
The refractometer is excellent for consistency — "is today's batch the same as yesterday's?" — but mediocre for an exact sugar count. Use it alongside a balancing calculator, not instead of one.
When a Brix meter pays for itself
A handheld Brix meter pays back in three scenarios common to working gelaterias:
- Fruit purée quality control. Variable sugar content across seasons changes sorbet balance — a 2 °Bx swing in a strawberry purée can shift the finished sorbet from creamy to icy.
- Recipe consistency. Catches MSNF and sugar variations from supplier batch changes before they reach the showcase.
- Maturazione check. Confirms the base reached target Brix before churning, especially useful when several operators rotate through the lab.
A laboratory-grade digital refractometer costs €350–800; a handheld optical model is €40–120 and is sufficient for daily gelato lab work.
Optical vs digital — which one to buy
Both work on the same physics, but digital models give a numeric readout with no eyestrain, automatic temperature compensation, and a wider Brix range (0–95). Optical models are cheaper and field-tested for decades, but require interpretation of the boundary line by eye.
For a working gelateria a 0–32 °Bx handheld optical refractometer (€40) plus a 28–62 °Bx model (€50) covers both sorbet and crema bases. For an R&D lab a single digital ATC model 0–85 °Bx (~€350) is more flexible.
Reading hot mix vs cold mix
Temperature is the single biggest source of error after dirty optics. Sucrose refraction shifts about 0.07 °Bx per degree Celsius. A non-ATC meter calibrated for 20 °C will under-read by roughly 2.8 °Bx at 60 °C — enough to send a balanced base out of the target window. For pasteurized mix coming straight out of the heat-hold step, either cool the sample in an ice bath for 60 seconds or invest in an ATC model that compensates automatically across 0–40 °C.
Sample preparation for fatty mixes
High-fat crema bases (8–12% fat) leave a film on the prism that throws off readings by 0.5–1.5 °Bx. The cleanest fix is dilution: take 5 g of mix, add 5 g of distilled water, stir, then read and multiply by two. For fruit pastes with seeds or fibers, filter through fine cheesecloth first. Always wipe the prism with isopropyl alcohol between fatty and non-fatty samples — water alone leaves residues.
Common mistakes that ruin readings
Three avoidable errors show up in nearly every lab audit. First, reading hot mix: at 60 °C, a non-ATC meter under-reads by 2–4 °Bx. Second, sampling from the top of an un-stirred tank: fat rises, so the surface skews low. Third, double-dipping a contaminated pipette across flavors — residual fruit acid throws off the next reading. Train every operator on the same protocol.
