Batch Freezer Sizing Guide — Match Output to Demand
Table of contents
Buying a batch freezer on gut feeling is how gelaterie end up with a machine that either bottlenecks the whole lab or sits half-empty. Sizing is a calculation: match the machine's hourly output and batch volume to your real daily demand, then add headroom.
A vertical batch freezer in an Italian gelato lab — the heart of daily production.
What "sizing" a batch freezer really means
A batch freezer, the Italian mantecatore, freezes and aerates one batch of mix at a time, then you extract it and start again. Unlike a continuous freezer, which runs a non-stop stream, a batch machine works in discrete cycles. That makes two numbers matter, not one:
- Batch capacity — the minimum and maximum mix volume the cylinder accepts per cycle (for example 1.5–6 L of mix).
- Hourly output — how much finished gelato it delivers per hour, which the maker quotes at a reference overrun.
Sizing means finding the machine whose hourly output covers your busiest day while its batch range fits the size of the individual flavors you actually run. Get either wrong and the lab slows down.
There is a prior question, too: should you even be batch-freezing at your volume? Batch machines are the right tool for artisanal production up to a few hundred liters a day, where flavor variety and daily freshness matter more than raw throughput. Past that, a continuous freezer usually wins on cost per liter. Most gelaterie never cross that line, so the rest of this guide assumes a batch freezer — but it is worth knowing the ceiling exists before you buy the biggest batch machine you can find to "future-proof."
The sizing formula
Start from demand, not from the spec sheet. Everything flows from how much finished gelato you sell on a peak day and how long your production window is.
Quick reference. Required hourly output (finished L/h) = daily finished volume ÷ production hours. Then convert to mix with overrun: mix L = finished L ÷ (1 + overrun). Choose a machine rated at least 25–30% above that number.

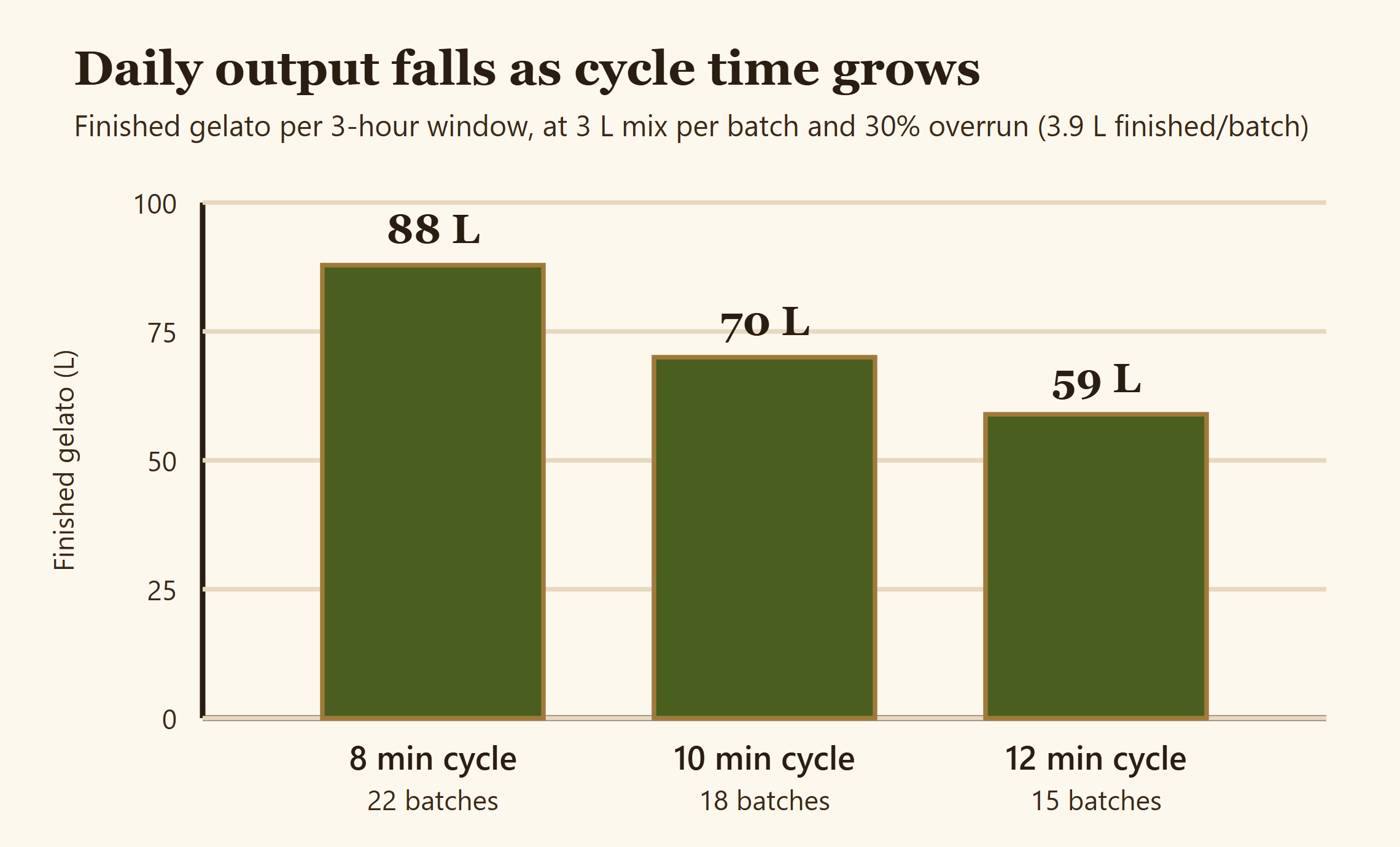

Figure 1 — How cycle time sets daily output at a fixed 3 L mix per batch.
The overrun step matters because makers quote output in finished liters, but your recipe is measured in mix. Gelato runs a lower overrun than ice cream — typically 20–35%, versus 50–100% for American-style ice cream (Goff & Hartel, Ice Cream, 7th ed.). A 5 L mix at 30% overrun yields about 6.5 L of finished gelato:
| Term | Meaning | Example |
|---|---|---|
| Daily finished volume | Peak-day sales in liters | 60 L |
| Production hours | Time you can run the machine | 3 h |
| Required output | Finished L needed per hour | 20 L/h |
| Overrun | Air whipped in | 30% |
| Mix per hour | Recipe volume to process | ~15.4 L/h |
Cycle time and what changes it
Hourly output is really batch size multiplied by how many batches you finish per hour, and that depends on cycle time — fill, freeze, extract. Typical gelato cycles run 6–12 minutes. Shorter cycles mean more batches per hour and higher throughput, but cycle time is not a free dial. It stretches when:
- The mix is warm going in (always chill and age the base first).
- Sugar load is high, which depresses the freezing point (see freezing point depression) and slows hardening.
- You push for a lower draw temperature.
- The condenser is fighting a hot lab or a dirty coil.
A machine rated at 10-minute cycles in a cool test room can easily run 12–13 minutes in a July kitchen, cutting real output by 20%. Size against your summer numbers.
Matching output to demand: a worked example
Say a shop sells 60 L of finished gelato on a peak day across six flavors, with a three-hour morning production window before opening.
- Required output: 60 L ÷ 3 h = 20 L/h finished.
- Add headroom: 20 × 1.3 = 26 L/h target rating, so a slow day or a new flavor never stalls the line.
- Batch size: at a 10-minute cycle you finish 6 batches/h, so 26 ÷ 6 ≈ 4.3 L finished per batch, about 3.3 L of mix. A machine with a 2–5 L batch range and roughly 25–30 L/h rating fits cleanly.
Notice the batch range check. Six flavors from 60 L is 10 L finished each — comfortably above the machine's minimum fill. If you ran twelve flavors from the same volume, each batch would drop near the minimum, where whipping suffers.
Now run the sanity check in the other direction. If that same shop grows to a 100 L peak day but keeps the three-hour window, required output jumps to 33 L/h, or 43 L/h with headroom — beyond most mid-size batch machines running 10-minute cycles. The realistic answers are a longer production window, a second shift, a bigger machine, or a step up to continuous freezing. Sizing is never a single purchase; it is a moving target you re-check every time volume climbs. Build the calculation into a spreadsheet so a new peak-day figure instantly tells you whether the current machine still fits.
Vertical vs horizontal, and why overrun is part of sizing
Traditional Italian labs favor vertical cylinders, which tend to incorporate less air and produce a denser, lower-overrun gelato. Horizontal machines, closer to the ice-cream lineage, whip more aggressively. This is a sizing input, not just a texture choice: a denser gelato packs more mass into the same volume, so a vertical machine's "20 L/h" is heavier — and slightly slower to freeze — than a horizontal's. Decide your house overrun first, because it changes how many finished liters a given mix volume becomes.
A worked reminder of why: at 25% overrun a 3 L mix yields 3.75 L of finished gelato; at 35% the same mix yields 4.05 L. Over a full production day of twenty batches, that 10-percentage-point swing is the difference between 75 L and 81 L of sellable product from identical recipes. If you quote a customer volume forecast off the wrong overrun assumption, you will either over-buy machinery or run short of gelato by mid-afternoon. Measure your actual overrun on your actual machine — the guide on how to measure gelato overrun walks through the weigh-a-known-volume method — and feed that real number back into the sizing formula rather than trusting the brochure.
Common sizing mistakes
- Sizing for the average day. Weekends and heatwaves define your capacity, not the Tuesday mean. Size for peak.
- Ignoring minimum fill. More flavors from the same volume push each batch toward the minimum, where texture collapses. A production timeline that clusters small batches often needs a smaller machine, not a bigger one.
- Forgetting the hardening chain. A fast batch freezer feeding a slow blast chiller just moves the bottleneck downstream.
- Buying on peak L/h alone. The spec sheet number assumes ideal mix, ideal room, ideal overrun. Discount it 15–20% for real conditions.
- Skipping the electrical and space audit. A larger machine may need three-phase power, more clearance for the condenser to breathe, and a floor that tolerates the vibration. A machine you cannot install or cool is not capacity.
A quick sizing checklist
Before you sign anything, confirm five numbers: peak-day finished volume, usable production hours, house overrun, smallest realistic batch, and the machine's rated output discounted for your summer room. If the discounted rating clears your peak demand with 25–30% to spare, and your smallest flavor batch still sits above the minimum fill, the machine fits. If either fails, adjust the plan before adjusting the budget — a longer window or fewer simultaneous flavors is cheaper than a second freezer.
