Blast Chiller for Gelato — Why -25 °C Hardening Matters
Table of contents

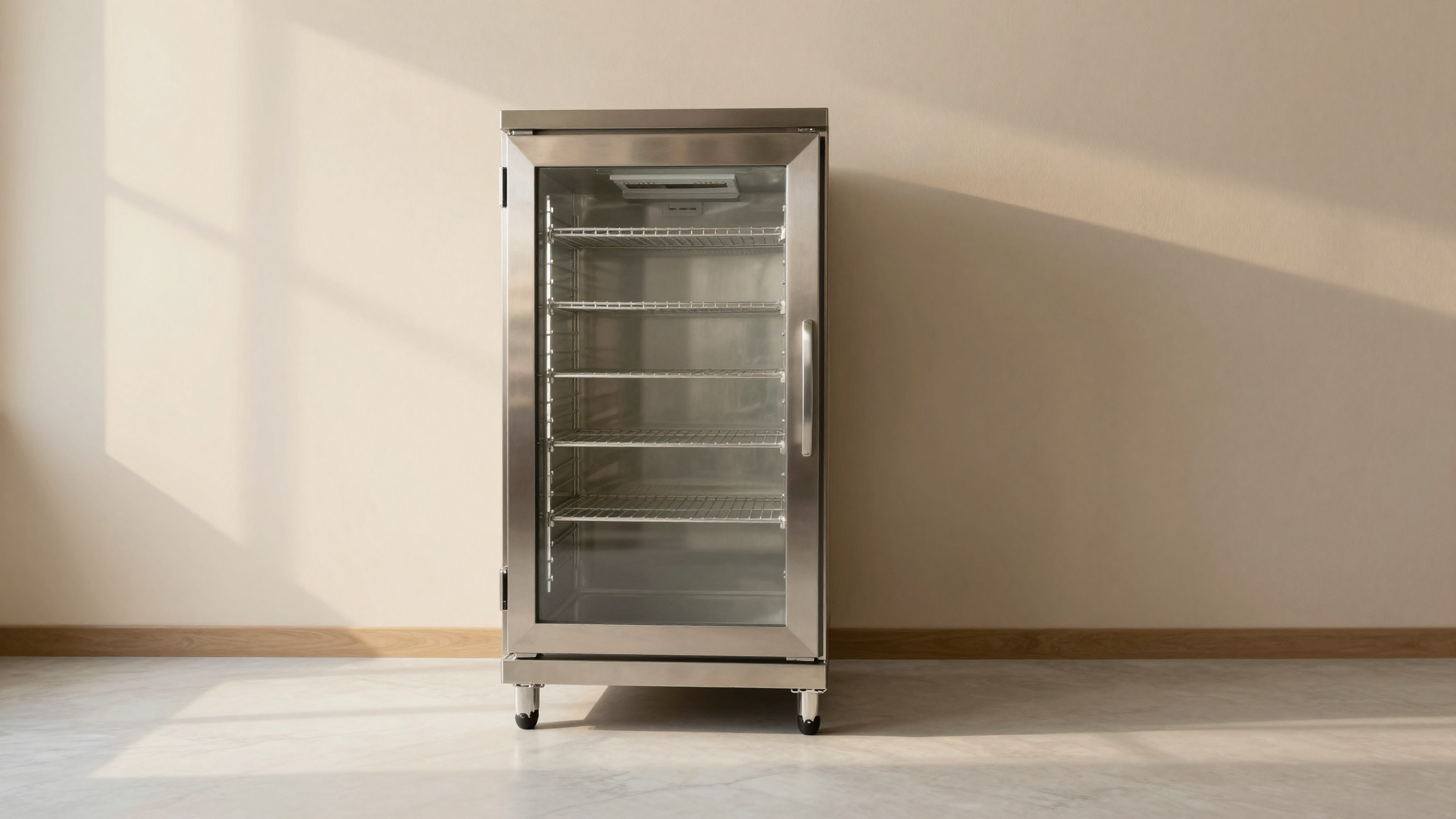

A blast chiller (Italian: abbattitore di temperatura) is the freezer that pulls finished gelato through the critical zone — from +5 °C down to -18 °C in 90 minutes — preserving the small ice-crystal structure built during mantecazione. Without it, slow recrystallization turns silky gelato grainy within hours.
The blast chiller sits between the mantecatore and the storage freezer in every professional gelato lab.
What a Blast Chiller Does in a Gelato Lab
The blast chiller is a high-power negative-temperature cabinet — typically rated -40 °C evaporator, with a strong fan to push cold air over the product surface. It performs abbattimento, the rapid temperature drop that locks in texture and food safety after pasteurization or mantecazione.
Two reasons it exists:
1. Microbial safety. Italian regulation D.M. 13.07.2015 ("Disciplina della produzione e del commercio di gelato artigianale") requires that any pasteurized gelato base be cooled to 4 °C or below within 90 minutes of leaving the pasteurizer. Slow cooling lets surviving spores germinate during the warm phase. A standard reach-in freezer cannot meet that ramp.
2. Texture preservation. When gelato exits the mantecatore at -8 to -10 °C with 25-35% overrun, only about half of the water is frozen. The remaining liquid is supercooled and wants to migrate and form large ice crystals. Pulling the core to -18 °C in under four hours freezes most of that water before crystals can grow.

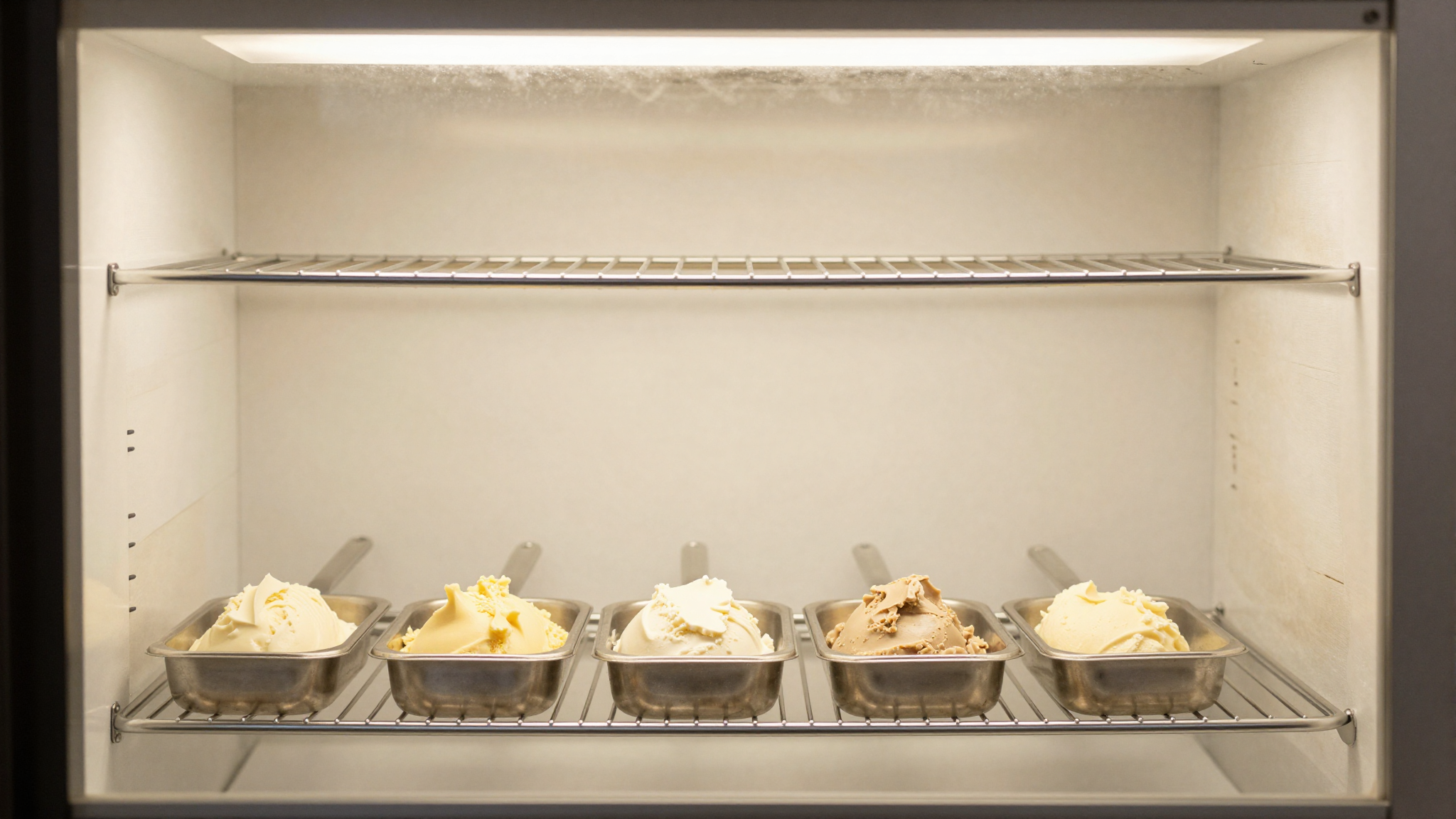

Pans go in within minutes of leaving the mantecatore — every minute of delay above -10 °C costs texture.
Positive vs Negative Cycles — The Two Programs
Most lab abbattitori run two named programs:
Quick reference. Positive cycle = pasteurized base, +90 °C → +3 °C in 90 minutes. Negative cycle = finished gelato, +5 °C → -18 °C core in 4 hours, then optional hold at -25 °C.

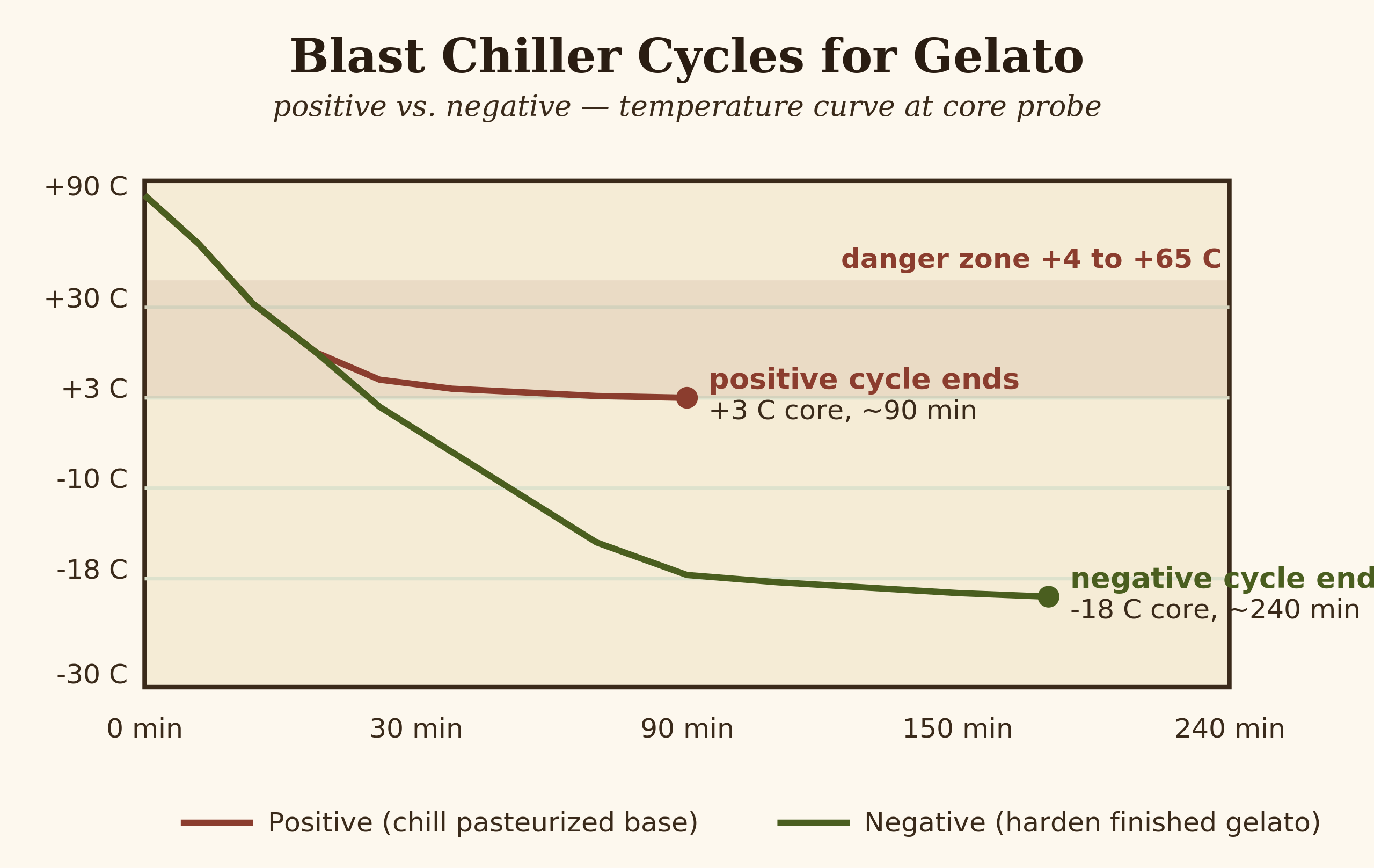

Figure 1 — positive cycle for pasteurized base, negative cycle for finished gelato hardening.
Positive cycle
Used immediately after pasteurizzazione. The mix enters near +85 to +90 °C and the chiller pulls to +3 °C as fast as the heat-transfer surface allows. From there the mix moves to the maturazione tank for 4 to 12 hours of cold rest at around +4 °C.
Negative cycle
Used for hardening freshly extruded gelato in pans. The pan core needs to reach at least -18 °C before transfer to the showcase or storage freezer. Many recipes — particularly low-fat sorbets — actually need to go to -22 to -25 °C for stable structure under display conditions.
Why -25 °C Hardening Matters
The relationship between hardening temperature and final ice-crystal size is well documented in dairy science (Marshall, Goff & Hartel, Ice Cream, 7th ed., chapter 11):
| Core temp at end of hardening | Mean crystal diameter | Texture under storage |
|---|---|---|
| -12 °C | ~ 75 µm | Coarse within 48 h |
| -18 °C | ~ 45 µm | Acceptable for 5-7 days |
| -25 °C | ~ 30 µm | Smooth past 30 days |
The slope is non-linear. Every additional 7 °C of cold roughly halves the crystal size, which is why a serious lab specifies the abbattitore to deliver a -25 °C core, not just the regulatory minimum of -18 °C. Above -10 °C, recrystallization runs roughly 100 times faster than at -25 °C — the reason a gelato that "felt fine" overnight in a domestic freezer ends up sandy by morning.
Sizing — Kilograms per 90-Minute Cycle
Manufacturers rate blast chillers in kilograms processed per 90-minute positive cycle. A common heuristic for a small artisan lab:
- 20-30 kg capacity → fits a single-pasteurizer / single-mantecatore line with output up to about 60 kg per day
- 40-60 kg capacity → fits two mantecatori or split shifts up to about 120 kg per day
- 80-120 kg capacity → multi-line or central kitchen operations
Undersize and you bottleneck the entire lab. Oversize and the surface area inside the cabinet stays underused, which actually slows the cycle on small loads because the air stream cannot move efficiently around half-empty shelves.
A second sizing axis is voltage and refrigerant. Single-phase machines under 5 kW work fine on standard EU domestic-grade 230 V circuits and small commercial supplies. Anything above that — and certainly any 50 kg-plus capacity — needs three-phase 400 V, which constrains where you can install it. Newer cabinets ship with R290 propane or R452A refrigerants instead of legacy R404A; both are F-gas-2024 compliant and run 5 to 10% more efficiently. If you are buying used, confirm the refrigerant before signing.
Common Mistakes and Maintenance
Three errors account for most blast-chiller texture problems.
1. Overpacking the cabinet. Pans stacked tight block air flow. Outer pans freeze in spec, inner pans take double the time and develop coarse crystals. Leave at least 2 cm between pans and never block the rear evaporator grille.

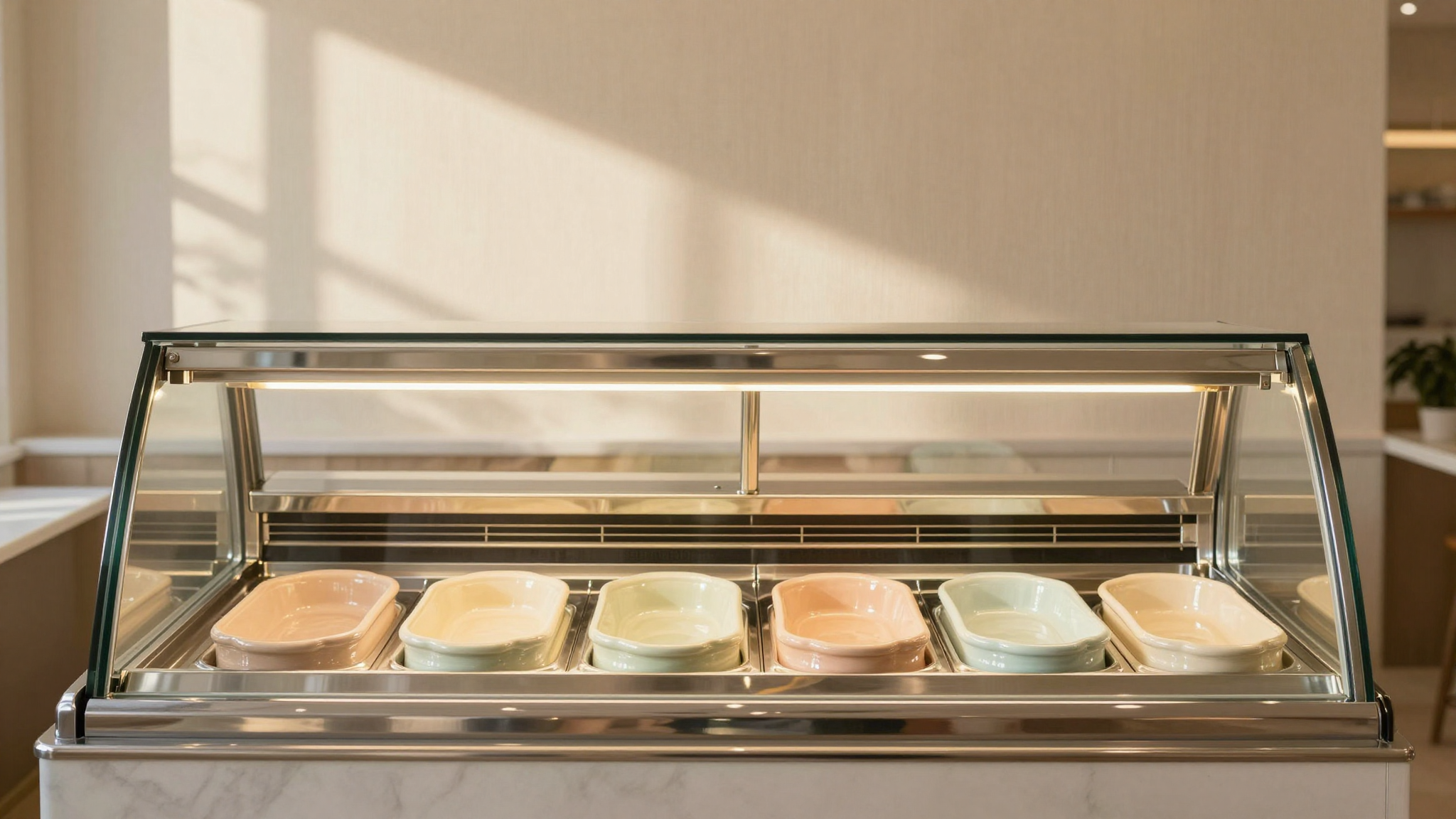

2. Skipping the negative cycle. Some shops harden in the showcase to save time. The vetrina runs at -14 to -16 °C — far above the -25 °C structural target. This is the single most common reason gelato turns icy by day three. See why is my gelato icy for the full failure mode.

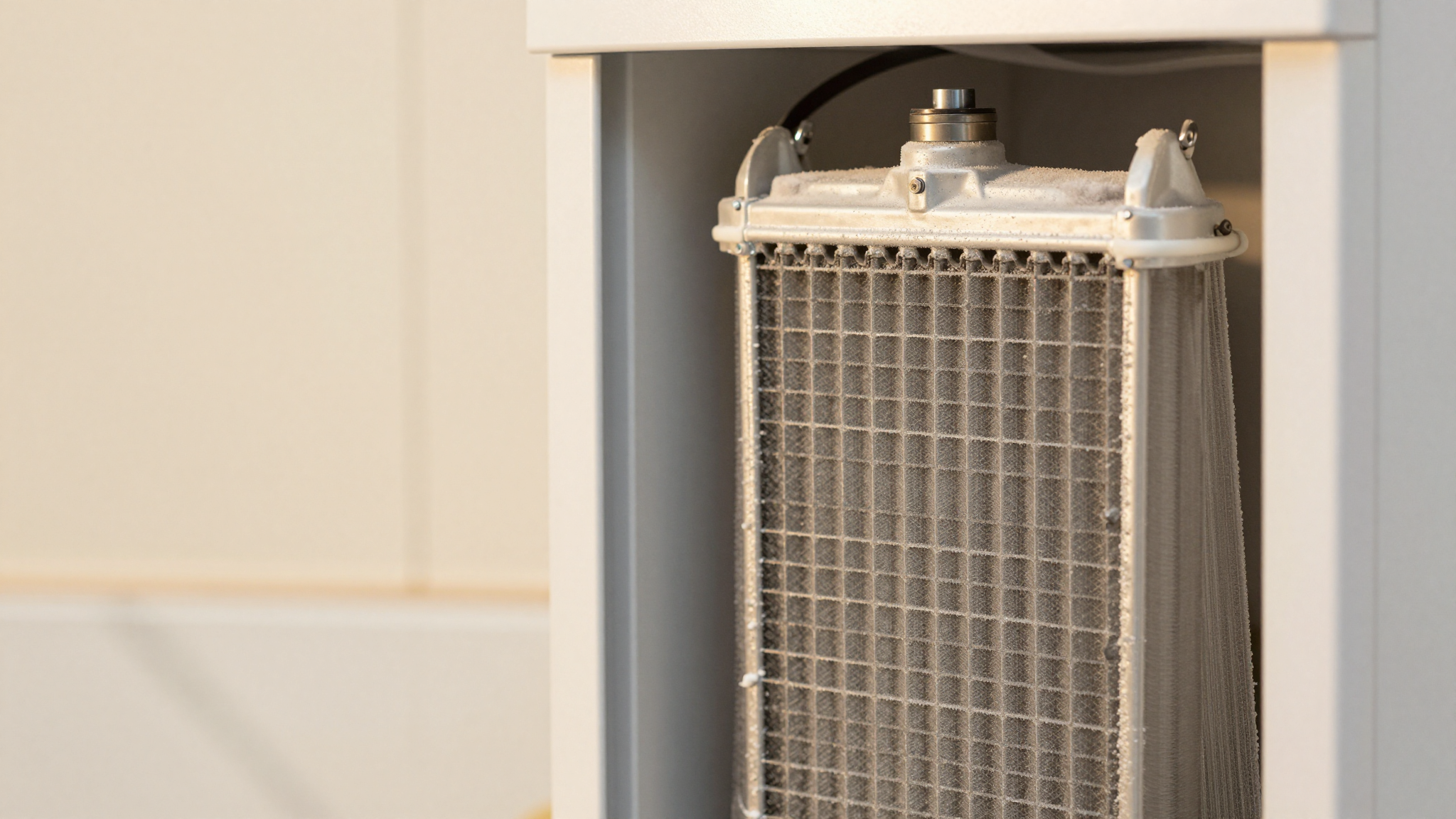

3. Dirty condenser coils. A clogged condenser raises evaporator temperature, lengthens cycles and costs about 10 to 15% in energy. Vacuum the condenser monthly and deep-clean quarterly.
Monthly condenser cleaning is the single highest-leverage maintenance habit for a blast chiller.
For broader equipment selection see best gelato machine for beginners and the full process map in how to make professional gelato. If your finished product keeps coming out brick-hard at the spatula, the cause is more likely bilanciamento math than the chiller itself.
