Kappa Carrageenan in Gelato: Gel Strength and Synergy
Table of contents
Kappa carrageenan is the strongest gelling member of the carrageenan family and the one most likely to ruin a gelato if you treat it like a normal stabilizer. Used at a tenth of a gum dose, and paired with the right partner, it does something no galactomannan can do alone.
Kappa comes mainly from Kappaphycus alvarezii, the red seaweed the trade still calls cottonii.
Kappa needs to go through a hot hydration step. Cold-dispersed, it never develops the network it was bought for.
What Makes Kappa Different From Iota and Lambda
All three carrageenans are sulfated galactans extracted from red seaweed, and all three are the same additive number — E 407 in the EU, or E 407a for the semi-refined processed eucheuma seaweed grade, with carrageenan listed in the US under 21 CFR 172.620. What separates them is how many sulfate groups sit on each disaccharide repeat, and whether the molecule can fold into a helix at all.
| Type | Sulfates per repeat | Ion that sets it | Gel character |
|---|---|---|---|
| Kappa | 1 | Potassium (K⁺) | Firm, brittle, prone to syneresis |
| Iota | 2 | Calcium (Ca²⁺) | Soft, elastic, thixotropic, no syneresis |
| Lambda | 3 | None — does not gel | Thickener only, no network |
Kappa's single sulfate leaves the chain free to form double helices; those helices then aggregate, and aggregation is what turns a viscous solution into a gel. Potassium is unusually good at screening the sulfate charge and letting helices pack, which is why potassium is the ion kappa responds to. Iota's second sulfate blocks tight aggregation, so its helices stay separate and its gels stay soft. Lambda has three sulfates and no 3,6-anhydrogalactose bridge, so it never folds at all.
That gradient is the whole practical story. Everything else follows from it, including the mistakes. A supplier selling you "carrageenan" without naming the fraction is selling you an unknown: the same weight of kappa, iota or lambda in the same base produces a brittle gel, a soft one, or none. Blends of kappa and iota are also sold, and they behave like neither parent.
Quick reference. In a dairy gelato base, kappa carrageenan is a secondary ingredient dosed at 0.01% to 0.05%, not a primary stabilizer at 0.2%. Its job is to stop serum separation, not to build body.

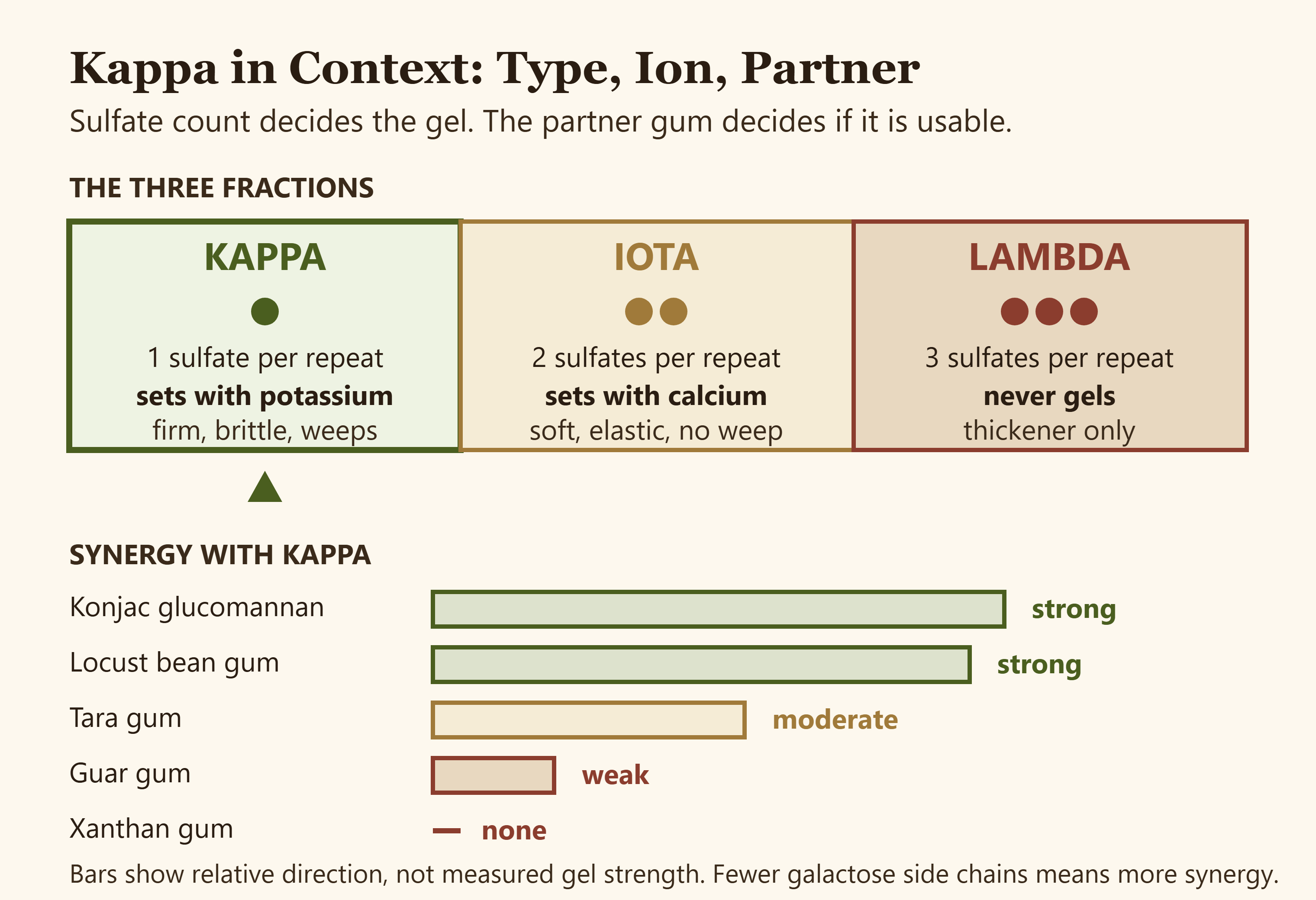

Figure 1 — Sulfate count sets the gel; the partner gum sets how much of that gel you can actually use.
Why It Works at a Tenth of the Dose in Milk
Carrageenan is famous for being roughly ten times more effective in milk than in water, and the reason is specific rather than general. Kappa carrageenan binds directly to κ-casein on the outside of the casein micelle: the negatively charged sulfate groups on the polysaccharide associate with a positively charged patch on the κ-casein chain. The result is a weak, three-dimensional network built out of the protein already in the mix, at a polysaccharide concentration far too low to gel water.
This is why chocolate milk needs only a few hundredths of a percent to keep cocoa in suspension, and it is why a gelato base needs about the same. If you dose kappa in a milk base at the level you would use in a water gel, you will not get ten times the effect. You will get a rubbery, brittle mix that cuts rather than scoops, and that weeps liquid in the tub.
Everything about the interaction depends on the protein being there and intact. If your process is doing something aggressive to the casein — heavy acidification, or a heavy hand with a calcium sequestrant like sodium citrate — the kappa network weakens with it. How casein and whey behave differently is worth understanding before you tune the dose.
The Synergies That Actually Matter
Kappa on its own makes a gel that is strong, brittle and inclined to weep. Blend it with the right galactomannan and the gel becomes elastic, stronger than either component alone, and far less prone to syneresis. This is the single most useful thing about the molecule.
The mechanism is structural. Galactomannans have a mannose backbone with galactose side chains, and stretches of backbone with few side chains — the so-called smooth regions — can associate with kappa helices and tie separate helical bundles together. More smooth regions means more synergy.
- Locust bean gum has the fewest side chains of the common galactomannans and gives the classic, strongest synergy. Gel strength climbs well above what either gum reaches alone, and it peaks somewhere near equal parts rather than at a trace of one in the other.
- Konjac glucomannan is not a galactomannan at all but associates with kappa even more readily, producing notably elastic gels at low total hydrocolloid.
- Tara gum sits between locust bean and guar in side-chain density, and its synergy sits there too.
- Guar gum is heavily substituted, has few smooth regions, and shows only weak synergy. Guar is a fine thickener in a gelato base; it is not kappa's partner.
- Xanthan gum synergises with locust bean, not with kappa. Do not assume the pairings are interchangeable.
If you are building a blend from components rather than buying one, this ordering is the map. A working stabilizer blend that includes carrageenan almost always includes locust bean gum alongside it, and that is not a coincidence.
A pure kappa gel: it cuts cleanly and holds an edge. That is exactly the texture you do not want in a scoop.
Hydration, Heat and the Acid Problem
Kappa is not a cold-swelling gum. It needs to be taken above roughly 70 to 80 °C to hydrate fully, and dissolved salts push that requirement higher. Disperse it dry-blended with sugar so it does not clump, then carry it through pasteurisation. The full picture is in the stabilizer hydration temperature guide, and this is not a step you can shorten.
Setting and melting are not symmetrical. A kappa gel sets on cooling and then has to be reheated above its setting temperature before it melts again — a hysteresis typically in the range of 5 to 20 °C, wider when potassium is abundant. In a gelato base that shows up as a mix which thickens noticeably during ageing and then behaves normally once it is churned.
The acid problem is the serious one. Carrageenan depolymerises in hot acid, and the damage is permanent: the chain is cut, and cooling does not repair it. Below about pH 4 at pasteurisation temperature, you are destroying the ingredient you paid for. Practical consequences:
- Never pasteurise carrageenan with the acid already in the mix.
- Add fruit purées, lemon juice or citric acid after the mix has cooled.
- For genuinely acidic sorbets, choose a different hydrocolloid — start from the best stabilizer for sorbetto rather than forcing carrageenan into the job.
- If you work acid-forward flavours often, a pH meter removes the guesswork from all of the above.
Dosing It Without Making Rubber
In a dairy gelato mix, the useful band is narrow.
| Dose (% of mix) | What you get |
|---|---|
| Below 0.01% | Nothing measurable; serum separation continues |
| 0.01% to 0.03% | Serum held, no textural signature — the target for most bases |
| 0.03% to 0.05% | Slight extra body; upper limit for a mix already carrying gums |
| Above 0.10% | Brittle, cuttable texture, short body, visible weeping in the tub |
Three rules make it behave:
- Weigh on a 0.01 g scale. At 0.1 to 0.5 g per kilogram, anything coarser is guesswork.
- Pair it, do not solo it. Kappa alone is a gelling agent; kappa with locust bean gum is a stabilizer.
- Watch the potassium. Salted or mineral-heavy bases bring their own K⁺, and the same dose sets harder than it did in your test batch.
If what you are actually fighting is ice growth in storage rather than serum separation, carrageenan is the wrong lever — heat shock is a cold-chain problem before it is a formulation one. And if you are not sure the base needs any hydrocolloid at all, settle that question first.
The goal: dense and elastic, with the serum held in place and no gel character on the palate.
