Delta E Color Tolerance for Gelato Batch Consistency
Table of contents
A customer will not tell you your pistachio drifted two shades greener this week. They will just stop believing the flavour is the same one they had last month. Delta E turns that vague suspicion into a number you can put a tolerance around and defend on a control chart.
Colour drift is the quality defect nobody complains about and everybody notices.
What Delta E actually measures
Delta E is a distance. It lives in CIELAB, the colour space defined by the Commission Internationale de l'Eclairage, where any colour is three coordinates: L star for lightness on a 0 to 100 scale, a star running from green to red, and b star running from blue to yellow. A pale pistachio base might sit near L star 78, a star minus 9, b star 32.
Measure a second batch, get a second set of coordinates, and Delta E is simply how far apart the two points are. In the original 1976 formulation that is the straight line distance: the square root of the sum of the squared differences in L star, a star and b star. One number, and it is the number your eye is approximately reporting when it says something looks off.
The value of that is not the measurement itself. It is that a distance can carry a tolerance. You cannot write "roughly the right green" into a specification. You can write "Delta E below 2.5 against the reference standard, or the batch does not go in the case."
Which Delta E: the 1976 formula or CIEDE2000
There are several Delta E formulas and they do not agree, which trips up anyone comparing numbers between two labs.
The 1976 version, often written Delta E ab, is the plain Euclidean distance described above. It is easy to calculate and perceptually uneven: the same numeric difference is far more visible in some regions of the space than others, and it exaggerates differences in saturated blues while understating them elsewhere.
CIEDE2000, standardised as part of the ISO and CIE 11664 series, applies weighting functions for lightness, chroma and hue plus a rotation term to correct the worst of that unevenness. It is more work to compute and it is what a modern instrument reports by default. For anything you intend to hold a supplier or a production line to, use CIEDE2000 and say so in the specification, because a Delta E of 2 in one formula is not a Delta E of 2 in the other.
The thresholds people quote deserve the same caution. A Delta E near 1.0 is usually described as imperceptible even with two samples touching, and a value around 2.3 is widely cited as the just noticeable difference for an average observer. Both figures come from controlled viewing conditions with flat, opaque, uniformly lit samples. A gelato pan under warm display lighting, half in shadow, seen for two seconds by someone deciding between three flavours, is not that. Treat the published thresholds as a starting scale, then calibrate them against what your own staff can actually pick out on the bench.
Quick reference. Delta E is the distance between two colours in CIELAB. Below 1.0 the difference is not perceptible side by side. Around 2.3 sits the commonly cited just noticeable difference. A production tolerance of 2.0 to 3.0 is realistic for most gelato flavours. Above 5.0 the batch reads as a different product.

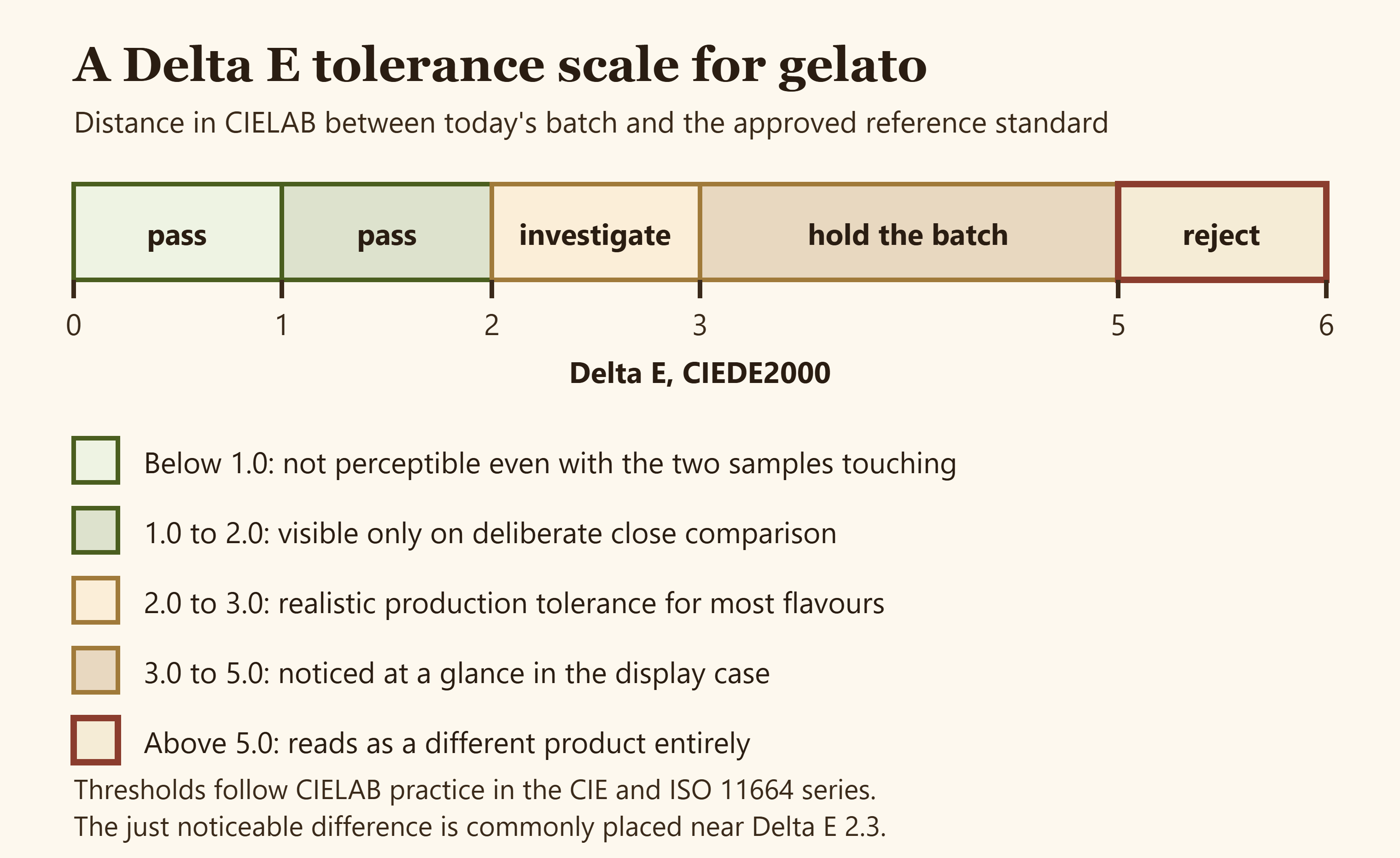

Figure 1. Where to put the line, and what each band actually looks like in the case.
Setting a tolerance you can actually hold
The temptation is to set the tightest number the instrument can resolve. Resist it. A tolerance you fail three times a week is not a tolerance, it is a source of ignored alarms.
Start by measuring what you already do. Take twenty consecutive batches of one flavour, measure each against a designated reference standard, and look at the spread. Most artisanal lines land somewhere between Delta E 1.5 and 3.5 batch to batch without doing anything special. Set the tolerance just outside your ordinary variation, then tighten it as you remove causes.
Tolerance should also vary by flavour, and by how the product is displayed. A pistachio sitting next to a second green flavour in the same display case is judged by direct comparison, so it needs a tighter number. A single ube pan with nothing purple beside it can carry more drift before anyone notices. Dark flavours are the most forgiving of all: differences in cocoa shades compress at low lightness, and the eye is poor at ranking them.
Where the measurement goes wrong
Most bad colour data in a small lab is a sampling problem, not an instrument problem.
Frozen gelato is a terrible specimen. The surface scatters light unevenly, ice crystals at the surface change the reading as the pan sits, and any freezer burn or oxidation shifts it further. Measure the aged mix at refrigeration temperature instead, before churning. It is liquid, homogeneous and repeatable, and it isolates the recipe from everything the freezer does afterwards.
Fix the geometry too. Same instrument, same aperture, same illuminant and observer, D65 and the 10 degree observer being the usual pair, same cell depth, same number of readings averaged. A translucent sample read through a different depth of product is a different colour, which is the single most common reason two readings of the same batch disagree. If you are still choosing hardware, colorimeter versus spectrophotometer covers what each one can and cannot resolve.
And keep the reference standard honest. A physical retained sample fades. Store the reference as CIELAB coordinates from a batch you approved, not as a tub in the back of the freezer.
Building the control chart
| Element | What to record | Typical setting |
|---|---|---|
| Reference standard | L star, a star, b star of an approved batch | fixed, reviewed twice a year |
| Sample point | aged mix at 4 degrees Celsius | before churning |
| Formula | CIEDE2000 | stated in the specification |
| Warning limit | Delta E where you investigate | 2.0 |
| Action limit | Delta E where the batch is held | 3.0 |
| Readings per batch | averaged, same cell | 3 |
The warning limit is the useful one. A single batch at 2.2 means nothing. Three consecutive batches drifting the same direction from 1.1 to 1.8 to 2.4 means an ingredient lot changed, and you can catch it before anything reaches the case.
What to do when a batch fails
Look at the components of the difference before you look at the recipe. A change concentrated in L star is usually overrun or air, since more air makes any colour lighter. A shift in b star toward yellow in a fruit product points at browning or oxidation. A drop in a star in a red sorbet is the classic anthocyanin story covered in colour stability in sorbet, where pH and heat, not dosage, are usually the culprits.
Only then look at the paste or powder. Natural colourants vary lot to lot, and a freeze dried fruit powder or a nut paste bought on price will move further than one bought on specification. Delta E does not fix that. It just makes it impossible to pretend it did not happen.
