A scoop that holds its shape on a warm counter is not doing that with sugar or stabiliser. It is doing it with fat that is partly crystalline, sheared into a connected network during churning. Get that network right and texture survives the walk to the table. Here is how it forms.
Shape retention at the counter is a fat structure question before it is a stabiliser question.
What a Fat Crystal Network Actually Is
Start with the raw material. Milk fat is not one substance. It is a mixture of triglycerides built from hundreds of distinct fatty acids of different chain lengths and saturation, and that variety is why it has no single melting point. Instead it melts across a broad range, from well below freezing up to around body temperature, which means that at any given temperature part of it is crystalline and part is liquid oil.
In your mix, that fat is not free-floating. Homogenisation breaks it into small globules, each wrapped in an interfacial layer of adsorbed milk protein and emulsifier. A properly homogenised gelato mix contains an enormous number of these globules, and left alone they would simply stay separate. That would be a stable emulsion and a disappointing gelato.
The fat crystal network is what happens when you deliberately break that stability under controlled conditions. During churning, globules collide under shear. Where a fat crystal from one globule pierces the membrane of another, and there is liquid oil available to wet the contact point, the two stick together without fully merging. They form a doublet, then a cluster, then a branching structure that spans the frozen matrix and partially coats the air cells.
That process has a name: partial coalescence. The word "partial" is doing the work. Full coalescence would merge the globules into progressively larger droplets and end as visible butter grains and oiling off. Partial coalescence stops short, leaving an irregular cluster that is still recognisably made of globules.
Butter is what full coalescence looks like. The whole craft is stopping one step before it.
Why Partial Crystallinity Is the Whole Trick
Partial coalescence has a narrow requirement: the fat must be partly solid. Not liquid, not fully solid.
If the fat is entirely liquid, globules that collide simply merge, because there is no crystal to pierce a membrane and no rigid scaffold to hold an irregular shape. If the fat were entirely solid, the globules would bounce off each other with no liquid oil at the contact point to glue them, and nothing would stick. Both extremes give you a mix that churns without building structure.
Milk fat happens to sit in the useful middle across exactly the temperature range gelato lives in. At the aging temperature of a refrigerated mix, roughly 4 degrees Celsius, something on the order of half the milk fat is crystalline. By the time you reach draw temperature the crystalline fraction is well past two thirds. Those are approximate figures and they shift with season and herd diet, but the shape of the curve is consistent, and the working window is comfortably inside it.
This is also the honest explanation for why fat replacement is never a straight swap. Coconut fat has a much sharper melting transition than milk fat, so it moves from mostly solid to mostly liquid over a narrow band instead of a broad one, and its network behaviour changes abruptly with a couple of degrees. Cocoa butter is sharper still. The trade offs are laid out in butterfat versus vegetable fat and cocoa butter versus milk fat.
Quick reference. Partial coalescence needs fat that is partly crystalline and partly liquid, shear to make globules collide, and an interface weak enough to break. Aging at 4 degrees builds the crystals, the emulsifier weakens the interface, and the batch freezer supplies the shear. Remove any one and the network does not form.

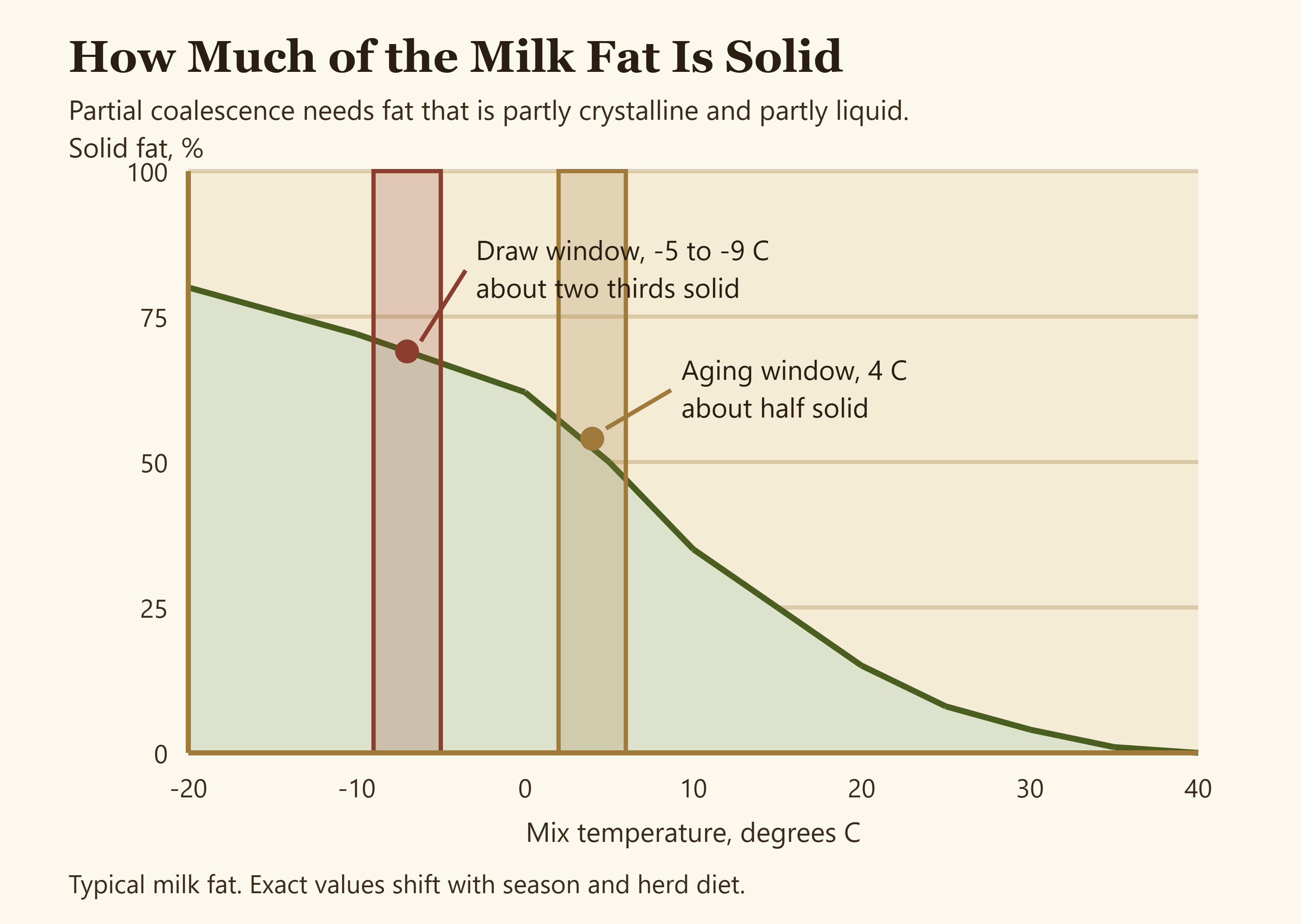

Figure 1 — Solid fat content across temperature, with the two windows where the network is actually built.
Where the Network Gets Built
Two stages, and they are not interchangeable.
Aging is where the crystals form. A mix cooled and held at around 4 degrees for four to twelve hours does three things at once: the stabiliser hydrates fully, the proteins rearrange at the fat interface, and the fat crystallises. That last one takes real time. Milk fat crystallisation is slow and continues for hours after the mix reaches temperature, which is a large part of why a rushed mix churns badly even when everything else is correct. The full case is in gelato mix aging and the Italian framing in maturazione.
Aging is also where the emulsifier does its work. Mono- and diglycerides, and the natural lecithin in egg yolks, are surface active enough to displace protein from the fat globule surface. That sounds like sabotage, and it is: a protein-rich interface is tough and resists rupture, while an emulsifier-rich interface is thinner and breaks under shear. You are deliberately building a weaker membrane so that the crystals inside can reach each other later. Dose and choice are compared in emulsifiers for gelato and lecithin versus mono-diglycerides.

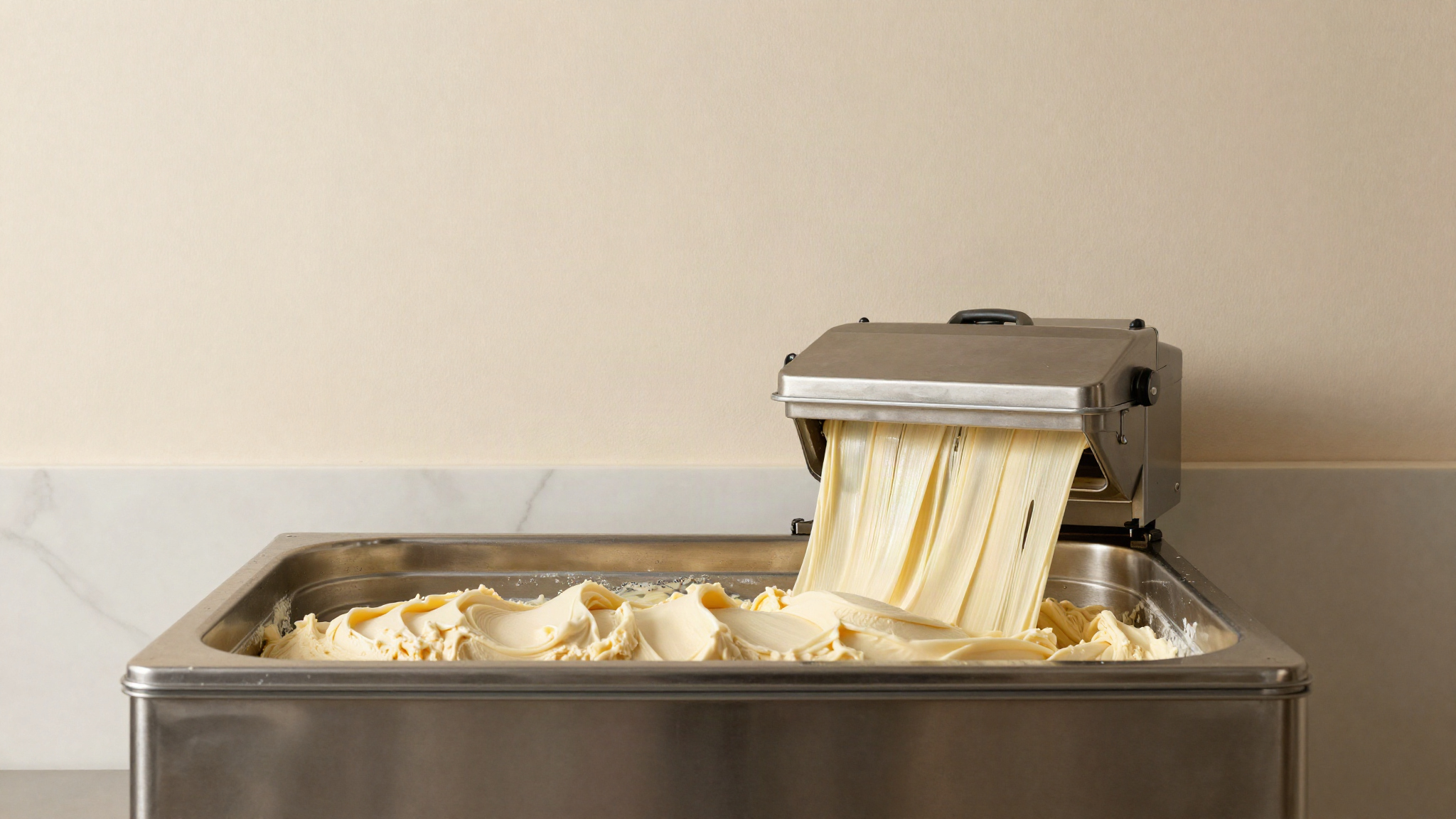

Churning is where the network assembles. Mantecazione supplies the two remaining ingredients: shear, which makes globules collide at a useful rate, and air, which gives the clusters a surface to adsorb onto. Fat clusters that park at the air cell interface are what keep those cells from collapsing and coarsening, and that is the mechanism behind melt resistance and shape retention.
Shear plus air plus partly solid fat. The batch freezer is doing structural work, not just cooling.
What Gelato's Lower Fat Changes
Italian gelato runs leaner and denser than American ice cream, typically 6 to 9 percent fat against 10 to 16, and 25 to 35 percent overrun against 80 to 100. Both differences reduce how much fat network you can build.
Less fat means fewer globules and fewer possible contact points. Less air means less interface for the fat clusters to stabilise, and less of the structural benefit that comes from a well-coated air cell. The honest consequence is that gelato carries a thinner fat network than ice cream does, and it shows: gelato melts faster at the same temperature, slumps sooner on the plate, and is served warmer and softer precisely because it cannot rely on fat structure for rigidity.
This is not a defect to engineer away. Density and fast flavour release are the point, and both come from the same lean, low-air formulation. But it does mean the other levers matter more in gelato than in ice cream. Serving discipline, draw temperature and ice crystal control carry a proportionally larger share of the texture load.
| Lever | Effect on the fat network | Practical range |
|---|---|---|
| Aging time at 4 C | More time, more crystal, more network | 4 to 12 h |
| Emulsifier dose | Weaker interface, more destabilisation | 0.2 to 0.5 % of mix |
| Fat content | More globules, more contact points | 6 to 9 % |
| Overrun | More air surface for clusters to coat | 25 to 35 % |
| Draw temperature | Colder draw, more crystal, stiffer network | -5 to -9 C |
| Homogenisation pressure | Smaller globules, more surface, stronger emulsion | Two-stage, typical dairy pressures |
Note the direction of the last row. Harder homogenisation makes the emulsion more stable, not less, because smaller globules carry more interfacial protein per gram of fat. That is why a heavily homogenised mix often needs more emulsifier, not less, to destabilise on schedule.
When It Goes Wrong
Too little network. The scoop melts fast, weeps clear serum at the base and loses definition within a couple of minutes on the counter. Usual causes: mix churned straight from pasteurisation without aging, no emulsifier in a low-fat base, or a draw temperature that is too warm. Start by adding aging time, since it costs nothing but a night. Broader diagnosis in why gelato melts too fast.
Too much network. The product tastes greasy, coats the palate and can show visible butter specks; in the worst case you find grains of butter on the dasher. This is full coalescence, and the causes are the reverse: emulsifier overdose, an over-rich base, or over-churning past the point where the mix stopped taking air. Pull the batch earlier and cut the emulsifier before you touch anything else.
A network that will not form at all. If the mix is correct and it still churns loose, look at the fat source. A vegetable fat with a sharp melting curve may simply be liquid at your process temperatures, in which case no amount of shear will build structure. Check the fat before blaming the stabiliser.
The melt test is the cheapest read on network strength you have. Time it and write it down.
