Homogenization is the quiet step that decides whether a high-fat gelato base turns silky or merely cold and rich. By forcing the warm mix through a tiny valve under pressure, you shatter the fat into a fine, stable emulsion. This guide explains when a two-stage homogenizer truly earns its place in a lab.
What a Homogenizer Actually Does
Quick reference. A homogenizer pushes the hot mix through a narrow gap, breaking fat globules from roughly 3–4 µm down to under 1 µm and building a fresh protein-based membrane around each droplet.
Milk fat naturally exists as globules a few micrometres wide, each wrapped in a fragile native membrane. When you homogenize, the intense shear, turbulence and cavitation at the valve gap tear these globules apart. The total fat surface area can multiply several-fold, and the milk proteins plus any added emulsifiers immediately rush in to coat the new, smaller droplets. That larger, protein-rich interface is what later gives gelato its clean melt and resistance to greasiness, because fat is finely and evenly dispersed instead of pooling and rising. The effect is permanent for that batch: once the new membrane sets, the globules stay small and the cream no longer separates on standing, which is exactly what you want before a long ageing rest.
This matters most for richer bases. A lean fruit sorbetto has almost no fat to disperse, so it never sees a homogenizer. A custard or chocolate base near the upper end of the ideal fat range benefits the most, and the smaller globules also interact more predictably with emulsifiers during freezing.
Single-Stage vs Two-Stage

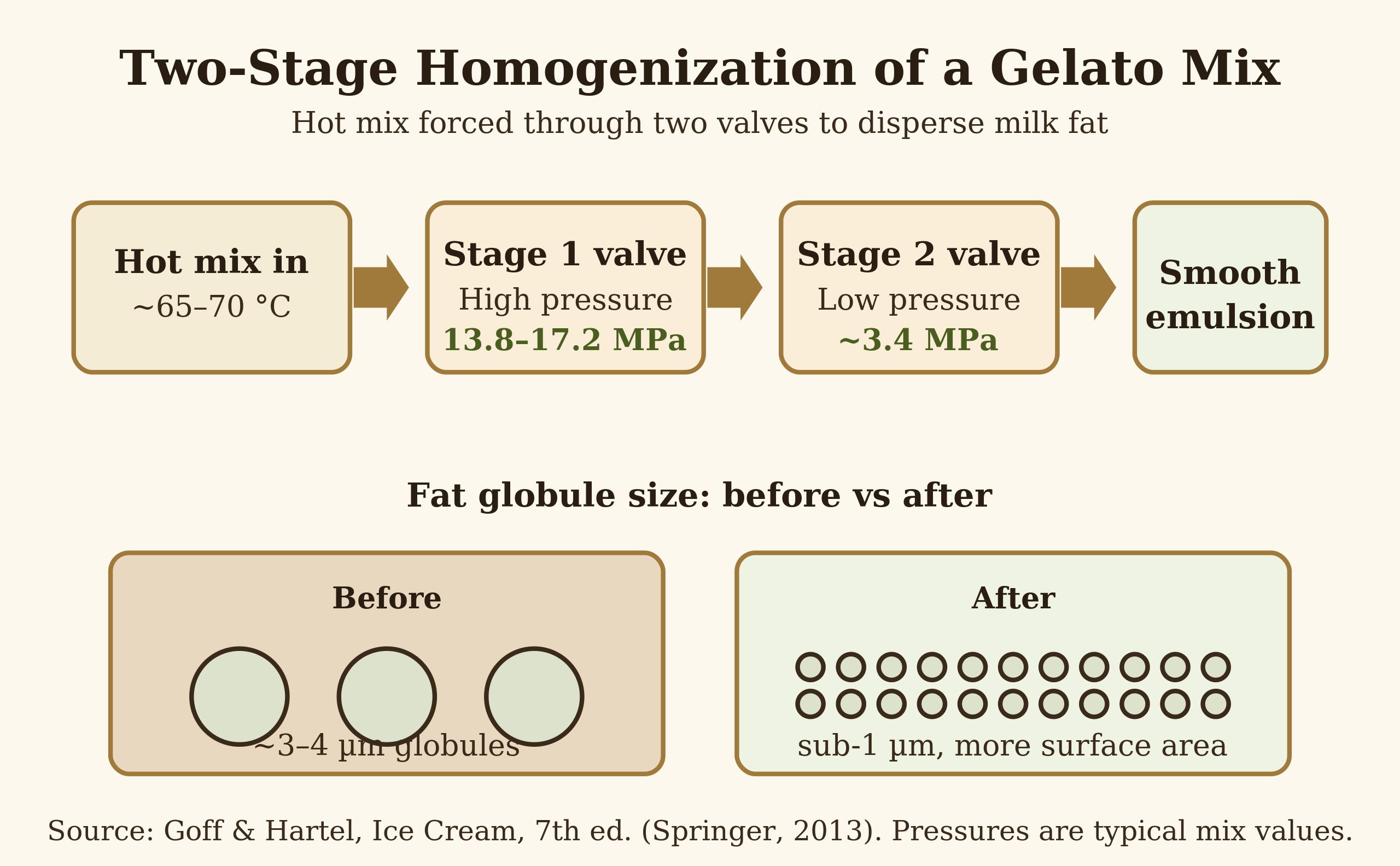

A single-stage machine has one valve and one pressure drop. The problem is that freshly formed small globules tend to clump back together into "homogenization clusters" before their new membranes finish forming. A second, low-pressure valve immediately downstream breaks those clusters apart again, leaving a far more uniform emulsion.
| Setup | First valve | Second valve | Result |
|---|---|---|---|
| Single-stage | High | — | Risk of fat clusters |
| Two-stage | High | Low (~1/5 of first) | Even, cluster-free emulsion |
For most dairy gelato bases, two-stage is the standard recommendation in ice cream literature because it controls clustering without over-processing the fat.
Pressure Settings That Work
Homogenize while the mix is hot, typically right around pasteurization temperature, because warm fat is liquid and disperses cleanly. Cold homogenization is far less effective and can strain the machine.
Classic two-stage settings for ice cream and gelato mixes put the first stage near 13.8–17.2 MPa (about 2,000–2,500 psi) and the second stage around 3.4 MPa (about 500 psi), per Goff and Hartel. Higher fat and higher total solids generally call for the lower end of that range, since an over-homogenized high-fat mix can become too stiff and even churn into a buttery, grainy defect. The position in the line matters too: in continuous systems the homogenizer usually sits just after the first heating stage of pasteurization, while many artisanal batch pasteurizers only agitate the mix and do not truly homogenize it. Always pasteurize properly; homogenization is not a substitute for thermal treatment, and the two steps work together. For the full heat-treatment picture, see the pasteurization deep-dive and the overview of pasteurizer types.
Homogenization, Overrun and Body
The benefit does not stop at smoothness. Those smaller, emulsifier-coated globules are primed for controlled partial coalescence during freezing. As the mix churns and chills, a fraction of the fat destabilizes and links into a network that supports the air cells, giving gelato better stand-up, slower meltdown and a drier, more elegant body. This is the same fat-network mechanism that influences overrun and how well a scoop holds its shape in the case.
There is a balance to strike. Too little dispersion leaves fat coarse and the body weak; too much, combined with high fat and aggressive emulsifiers, tips the mix into excessive churning and a greasy, broken texture. Homogenization also raises mix viscosity slightly, because the new fat surface adsorbs protein, which can subtly change how the base ages and freezes. In practice, well-homogenized rich bases tend to whip more evenly in the batch freezer and produce a tighter, more consistent air-cell structure than the same recipe left coarse.
Cleaning, Cost and Upkeep

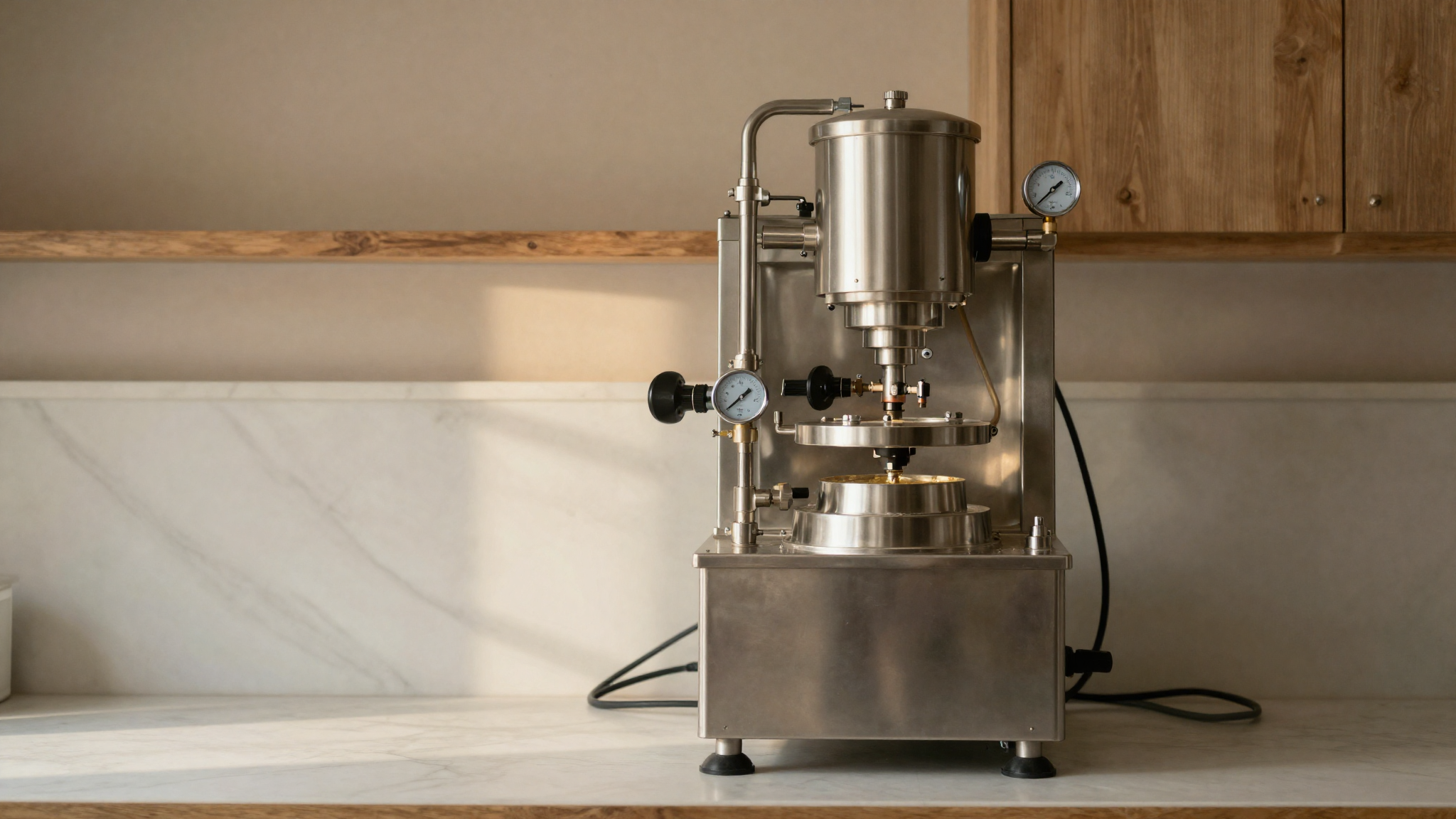

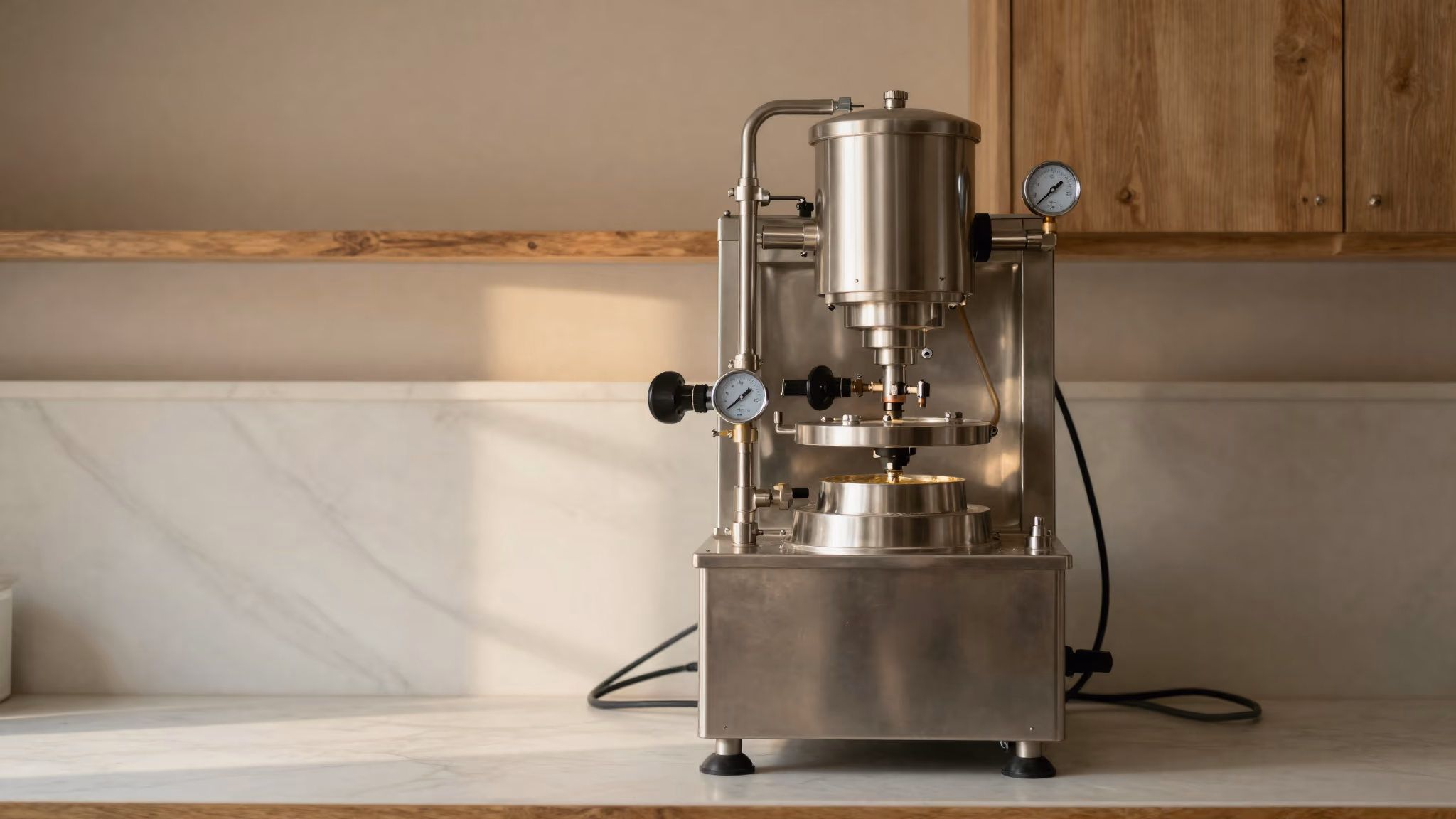

A homogenizer is a high-pressure positive-displacement pump with precision valves, so it demands disciplined cleaning. Plan for clean-in-place cycles after every production run, periodic valve and seat inspection, and replacement of worn parts that otherwise leak or lose pressure. It is another machine taking floor space, power and maintenance hours.
So, do you need one?
- Skip it if you run mostly sorbetti, lean bases, or low volumes. High-shear mixing inside a good pasteurizer already disperses modest fat loads acceptably.
- Consider it if you make rich, high-fat or high-solids bases and want consistent, repeatable texture batch after batch.
- Prioritise it in larger operations where uniformity across big volumes and longer ageing defines your quality.
For many shops the money is better spent first on a quality batch freezer, a blast chiller for fast hardening, or a combined pasteurizer. If you are still building your room, weigh it against the full equipment startup list before committing. Better dispersion will never rescue a poorly balanced recipe, so a smooth base always starts with the numbers, not the pump.
Common Mistakes to Avoid
A homogenizer rewards discipline and punishes shortcuts. The errors below are the ones that quietly undo its benefits:
- Homogenizing a cold mix. Fat must be liquid to disperse. Run the mix hot, near pasteurization temperature, or the valve simply strains against a stiff emulsion and the globules never break down properly.
- Skipping the second stage on rich bases. On high-fat dairy mixes, a single high-pressure pass leaves clusters that re-form. Without the low-pressure second valve, you can end up with a coarser emulsion than you expected.
- Chasing pressure. More is not better. Pushing a high-fat mix to extreme pressures over-destabilizes the fat and produces a buttery, grainy body once churned. Match pressure to fat and solids, and stay at the lower end as fat rises.
- Treating it as a recipe fix. Homogenization disperses fat; it does not correct water, sugar or stabilizer balance. If the base is icy or weak, the numbers are the problem, not the pump.
- Letting hygiene slip. High-pressure valves and seats trap residue and wear over time. Skipped cleaning invites off-flavors and pressure loss, so build clean-in-place and inspection into every cycle.
Get these right and a homogenizer becomes a quiet, reliable contributor to texture. Get them wrong and it adds cost and cleaning for no real gain.
