Pasteurizer Types for Gelato — Batch vs Continuous Guide

A pasteurizer is the most expensive piece of equipment in a small gelato lab — and the one most often bought wrong. The choice between batch and continuous, vertical and horizontal, low and high cycle is a choice about volume, flavor, and food-safety paperwork in equal measure.

The right pasteurizer pays for itself in microbial safety, texture, and shelf life.

What a pasteurizer actually does in a gelato lab

Pasteurization in gelato is not just about killing bacteria. The same heat-and-hold cycle that gets the mix above 65 °C also dissolves milk solids, melts the fat, hydrates stabilizers, denatures whey proteins, and starts the maturazione clock. Skip it and your mix is microbiologically unstable, your stabilizers do not bloom, and your texture is grainy.

Italian regulation D.M. 13.07.2015 ("Disciplina della produzione e del commercio di gelato artigianale") sets three legal cycles for artisan gelato base, all backed by EU 853/2004 milk-hygiene rules:

Quick reference. Three approved cycles. 65 °C × 30 min (LTLT). 75 °C × 15 s (HTST). 85 °C × few s (high pasteurization). All require cooling to ≤ 4 °C within 90 minutes.

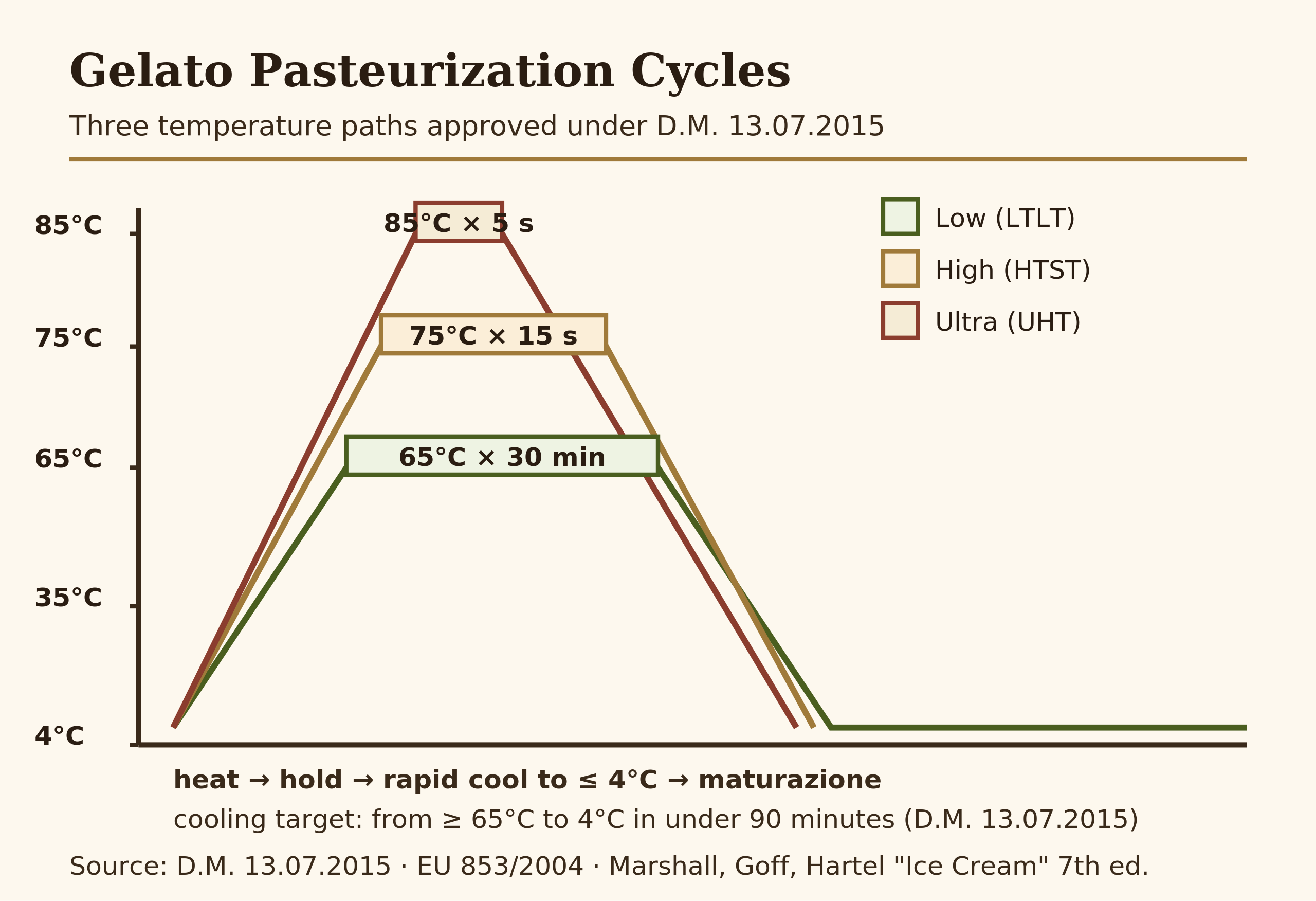

Figure 1 — the three legal cycles and the rapid-cooling phase that follows them.

For the broader concept, see Pasteurizzatore Explained. For the next step in the production chain see Mantecatore and Mantecazione.

Batch vs continuous: the volume question

The first split is by flow architecture.

Batch pasteurizers are essentially heated, agitated tanks. You pour the mix in, the machine heats to setpoint, holds for the programmed time, then cools. One cycle = one tank of base. Capacity per machine ranges from 6 L (small artisan) to 200 L (medium pasticceria). Pretty much every artisan gelato lab in Italy runs batch.

Continuous pasteurizers flow the mix through a heat exchanger (plate or tubular), holding it at temperature in a long stainless-steel tube before re-cooling on the other side. Throughput is measured in litres per hour, not per cycle. This is industrial territory — supermarket-brand ice cream, large processors, ≥ 500 L/h plants.

For artisan workflows under ~150 kg of base per day, batch wins on flexibility (recipe-by-recipe) and on capital cost. The math flips around 500 kg/day.

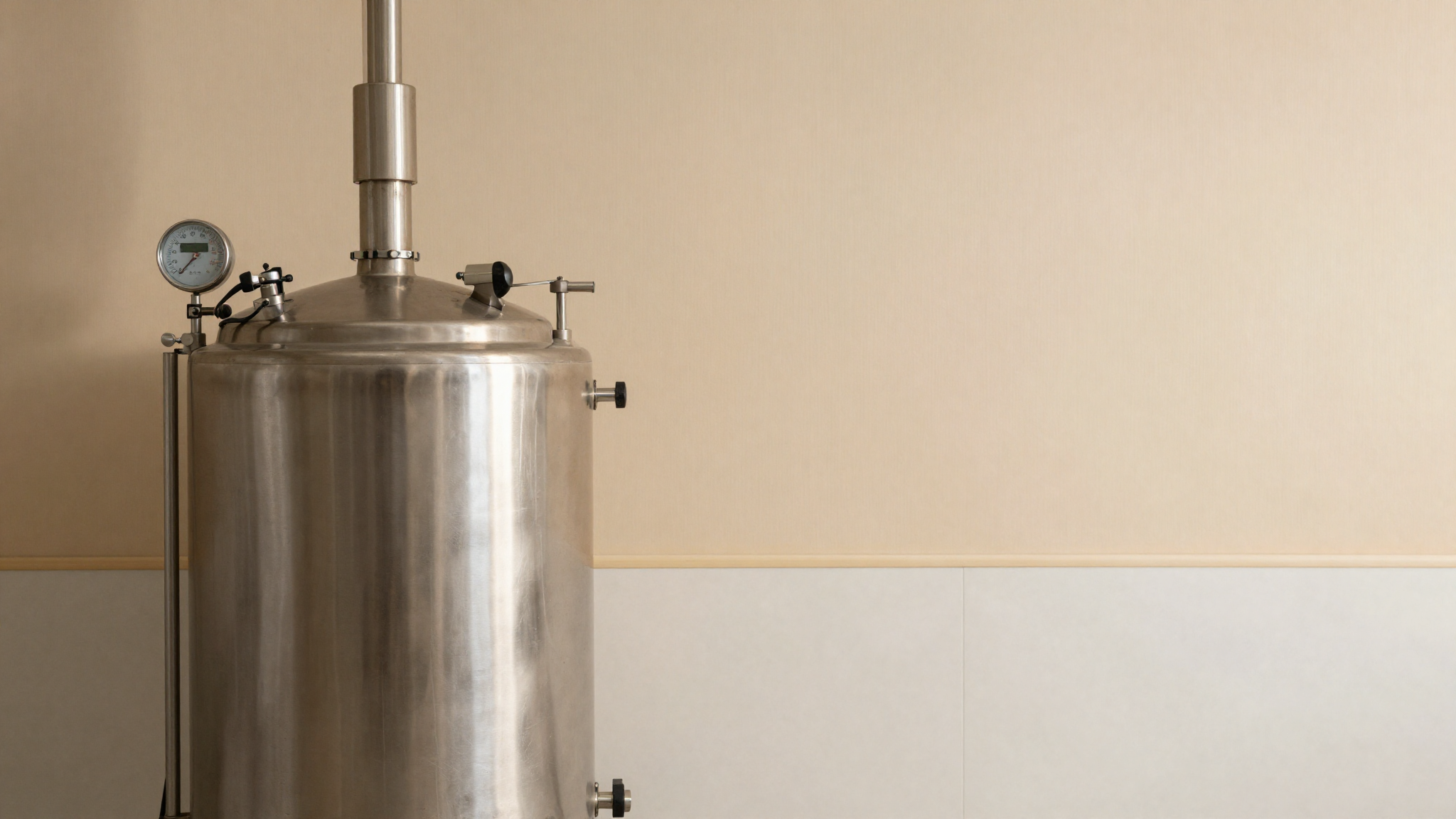

A typical 30 L vertical batch pasteurizer — bain-marie heating, scraped-surface agitator.

Vertical vs horizontal: the geometry question

Inside the batch family, the second split is tank orientation.

Vertical pasteurizers (Italian standard) have a tall cylindrical tank with the agitator coming down from the top. The base flows around the heated wall in a tight circulation pattern, which makes heat transfer fast and even. The footprint is small — you can fit a 30 L unit in roughly 0.5 m². Bravo Pastomaster, Carpigiani Pastomaster, and Frigomat Pastoking are all vertical designs.

Horizontal pasteurizers lay the cylinder on its side. The agitator is a horizontal scraping shaft. They take more floor space (~1.5×) but offer larger viewing/inspection openings and easier visual access during cleaning. Common in US dairy plants and larger industrial gelato production.

Practical differences:

• Heating speed. Vertical units typically heat 30 L from 4 °C to 85 °C in 25–35 minutes. Horizontals at the same volume take 35–45 minutes.
• Cleaning (CIP). Horizontals score better — flat bottom, larger door, easier to scrub manually. Verticals require a CIP system or at minimum a fogger and aggressive rinse.
• Foam. Vertical agitators are gentler on the air-liquid interface, so less foam forms during the heating ramp. Useful for high-protein bases (yogurt gelato, cream-heavy fior di latte). See Fior di Latte.
• Capacity. Above ~80 L per batch, horizontal designs scale better; vertical tanks become structurally awkward.

For most artisan shops opening their first lab in 2026, vertical is the default answer. Pick horizontal only when you cross 100 L per batch or when your local regulator requires manual visual inspection during the cycle.

Low vs high pasteurization: the flavor question

The third split is the temperature cycle itself.

• LTLT (low temp, long time): 65 °C × 30 min. Gentle on flavor — preserves volatile aromatics in fruit purées, citrus, herb infusions, and delicate dairy. Higher microbial load reduction than people think (5-log on most pathogens) but slower throughput. Requires the longest cooling phase.
• HTST (high temp, short time): 75 °C × 15–30 s. The "default" cycle for most modern artisan gelato — good safety margin, decent flavor, fast turnaround. Standard for chocolate, hazelnut, dairy-heavy bases. Cross-reference How to Make Professional Italian Gelato.
• High pasteurization: 85 °C × 5–10 s. Stronger cooked-milk note (Maillard browning), better stabilizer hydration, longer shelf life. Best for stabilizer-heavy or cream-heavy bases where slight cooked notes are an asset (caramel, chocolate, crema). Required by some operators for export-grade product.

Most modern Italian pasteurizers (Bravo Pastomaster, Carpigiani Pastomaster RTL, Frigomat KT) come pre-programmed with all three cycles and let you save custom recipes. The choice is per-flavor, not per-machine.

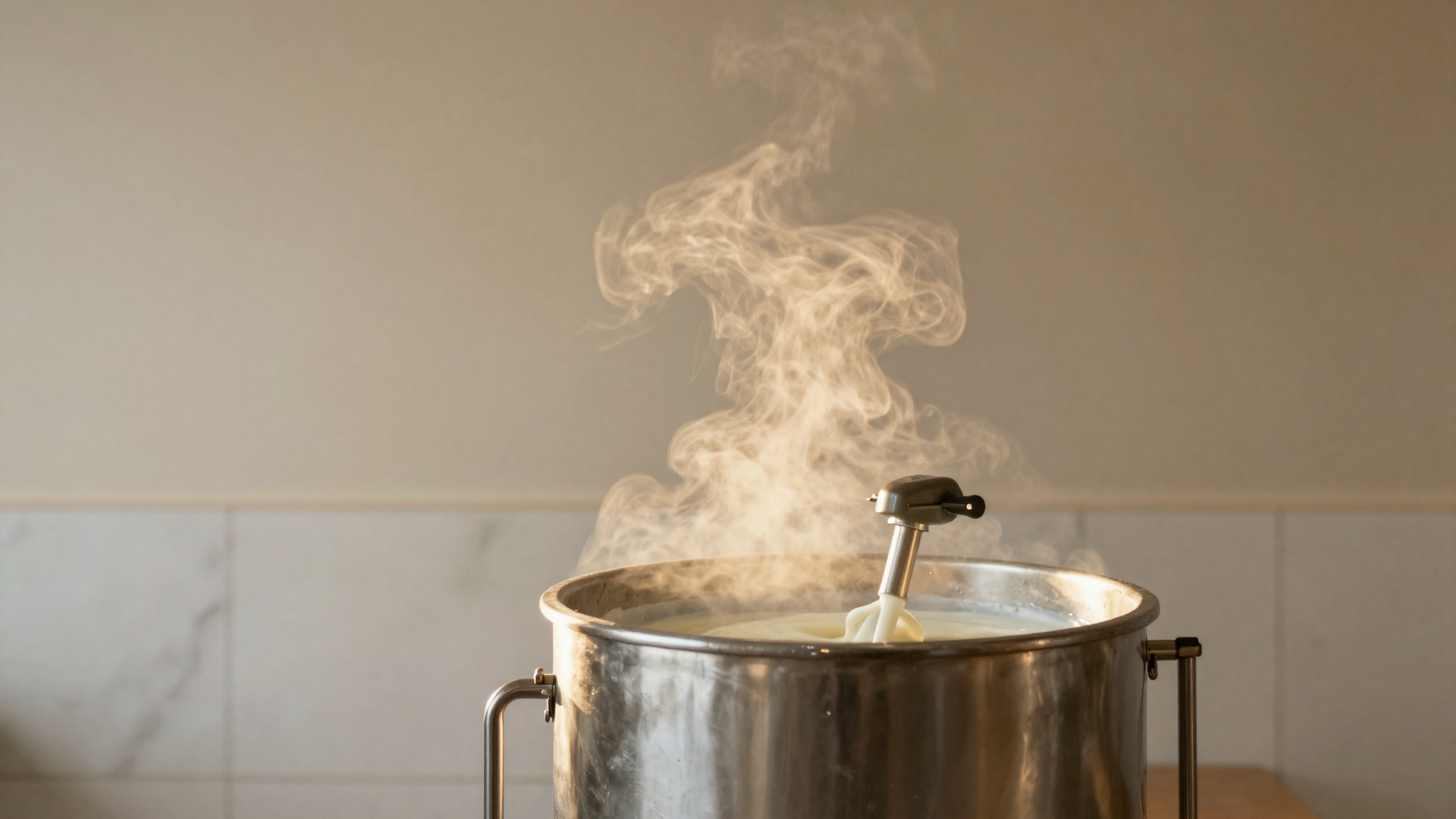

The cycle in action: 75 °C HTST holding phase before the rapid cool-down.

Heating method: bain-marie, direct, dry electric

A subtler distinction inside vertical batch units is how the heat reaches the mix:

• Bain-marie (water jacket). A double-walled tank filled with water around the inner cylinder. Heat is transferred through the water, never directly. Very gentle, no scorching, ideal for stabilizer-rich and high-sugar bases. Slower to heat (~20% slower than direct).
• Direct electric. Heating elements pressed against the outer wall of the inner cylinder. Faster but can scorch high-sugar mixes against the wall. Usually combined with continuous scraping to avoid burnt notes.
• Dry-bath / glycol jacket. A heat-transfer fluid (food-grade glycol or oil) instead of water. Allows higher peak temperatures with smaller swings. Found on premium machines.

For an artisan first machine, bain-marie is the safe pick. Pay the speed premium; you do not want a 5 kg base of caramel base scorching against an electric wall.

Combined units: pasteurizer + ager + cooler

Modern Italian pasteurizers are almost never single-purpose. The same vertical tank handles:

1. Heating + holding (pasteurization)
2. Rapid cooling to ≤ 4 °C (abbattimento on a separate blast chiller is still better, but the pasteurizer can do the soft cool)
3. Aging at 4 °C with periodic agitation (maturazione) for 6–12 hours

This collapses three machines into one. Your mix never leaves the sealed tank between heating and the moment it reaches the mantecatore. It is also the single biggest food-safety upgrade compared with a manual pot-and-thermometer setup.

Capacity sizing: what to buy

Quick sizing guide:

For a typical 30 m² artisan shop in Italy doing ~50 kg/day across 8 flavors, a 30 L vertical bain-marie with combined ager is the right answer. Match to your bilanciamento target volumes and to the best gelato machine setup downstream.

Maintenance: the part nobody mentions

Three things kill pasteurizers — milk-stone scale on the heated wall, agitator-seal failure, and burnt program ROMs from voltage spikes. Mitigation:

• Daily CIP with hot caustic (1.5%) at end of shift, then acid rinse weekly to remove milk-stone (calcium phosphate scale).
• Replace agitator seal annually — a 50 € part that prevents 5 000 € of motor damage.
• Use a UPS or surge protector on the control panel. A single lightning storm has cost more than one shop a 12 000 € machine.
